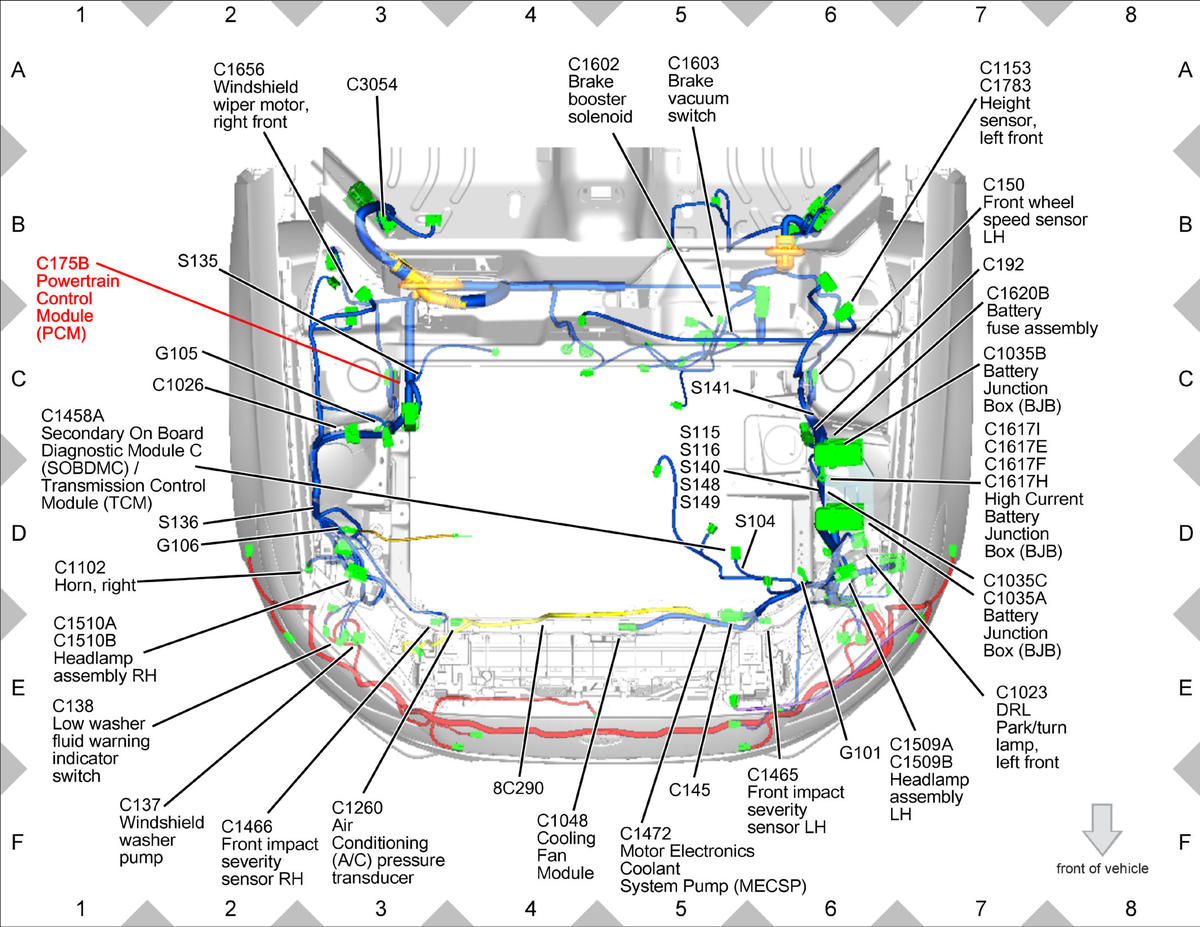

Powertrain Control Module (PCM) Engine Compartment RH Side

GFDWR70898

Courtesy of FORD MOTOR COMPANY
