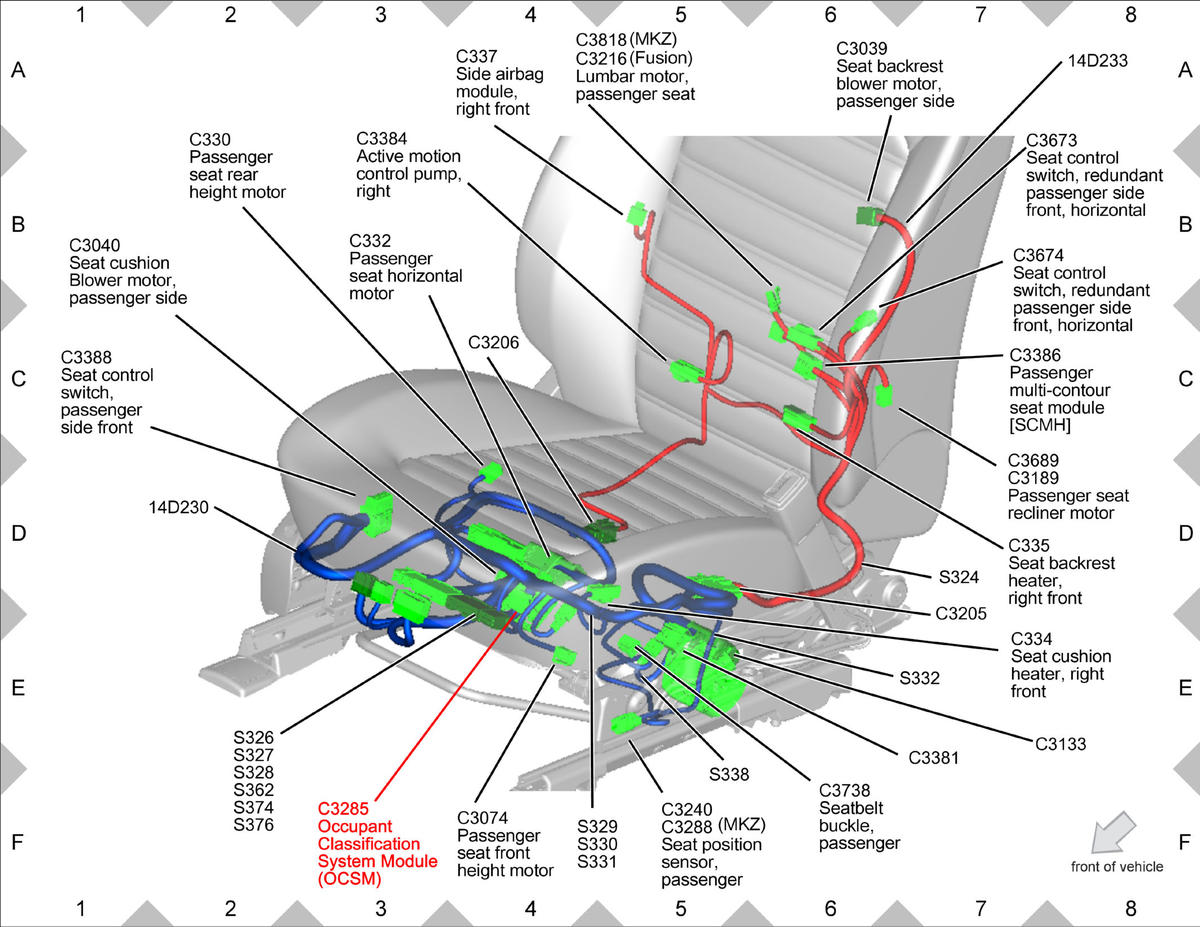

Occupant Classification System Module (OCSM) On Passenger Seat Frame

GFDWR70869

Courtesy of FORD MOTOR COMPANY
