OEM Component Harness Location Charts By Components (Hybrid/ENERGI)
>>
Component Location Charts By Components
>>

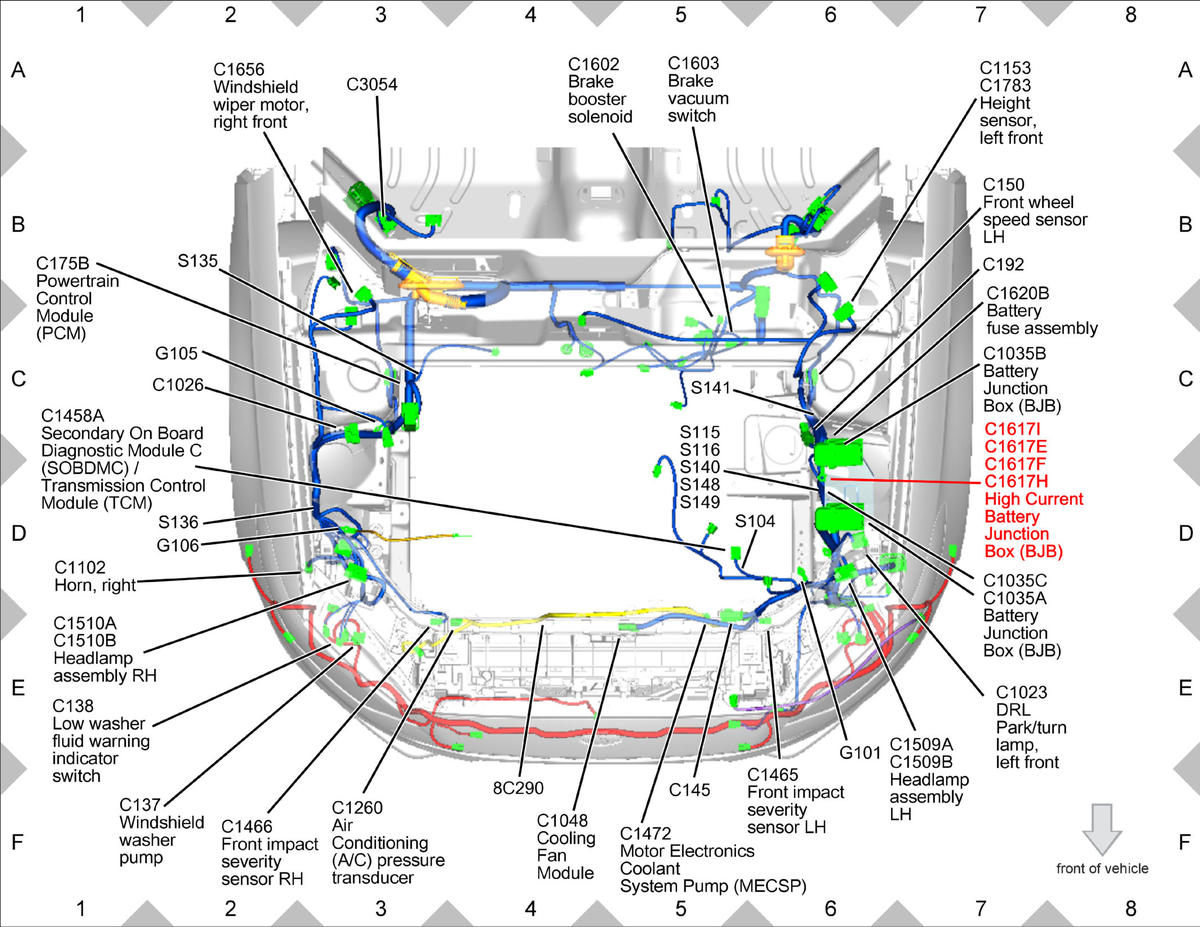

High Current Battery Junction Box (BJB) Under BJB 2
High Current Battery Junction Box (BJB) Under BJB 2
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
