Home >> Ford >> 2019 >> Fusion Energi Titanium >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid/ENERGI) >> Component Location Charts By Components >> Front Door Lock Switch LH (Fusion With Memory)

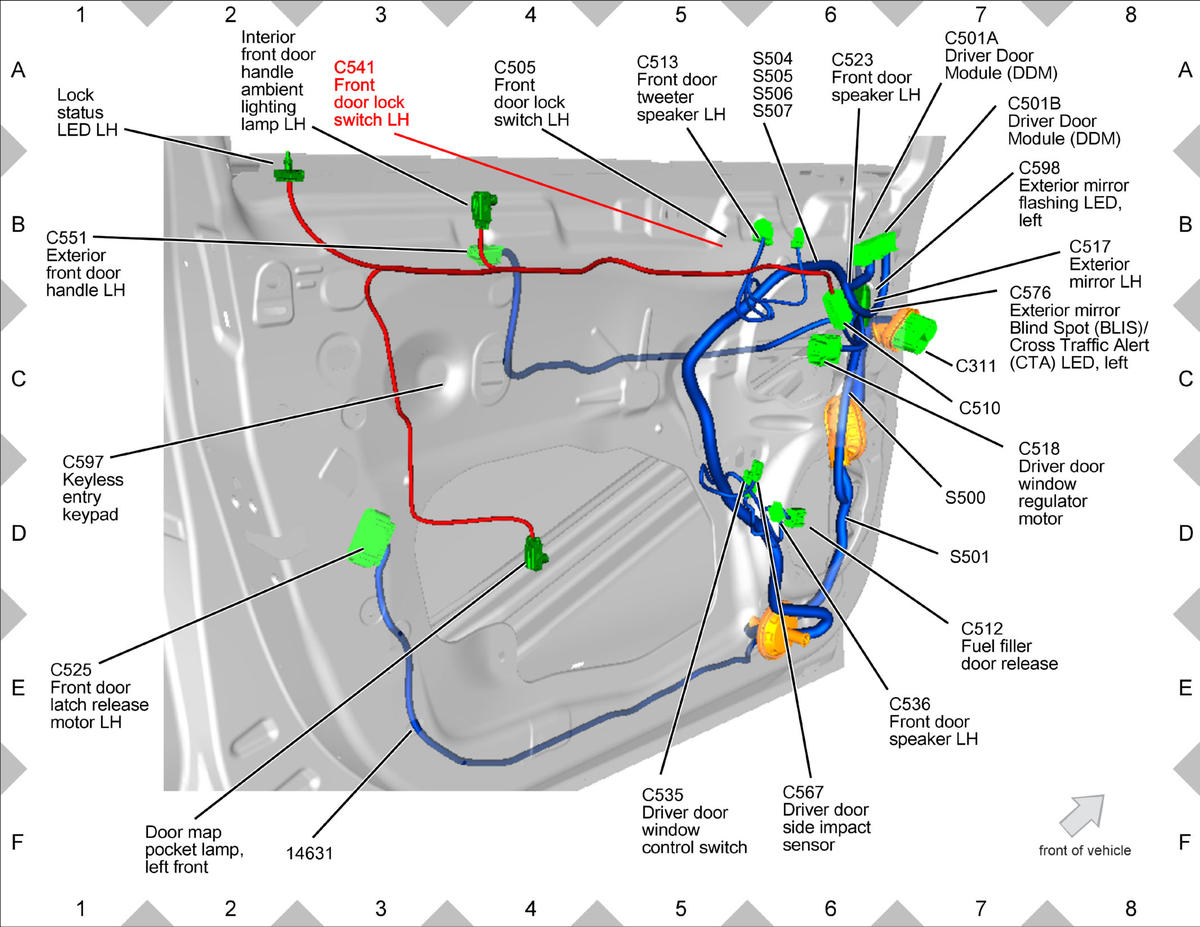

Front Door Lock Switch LH (Fusion With Memory)

GFDWR70732

Courtesy of FORD MOTOR COMPANY
