OEM Component Harness Location Charts By Components (Hybrid/ENERGI)
>>
Component Location Charts By Components
>>

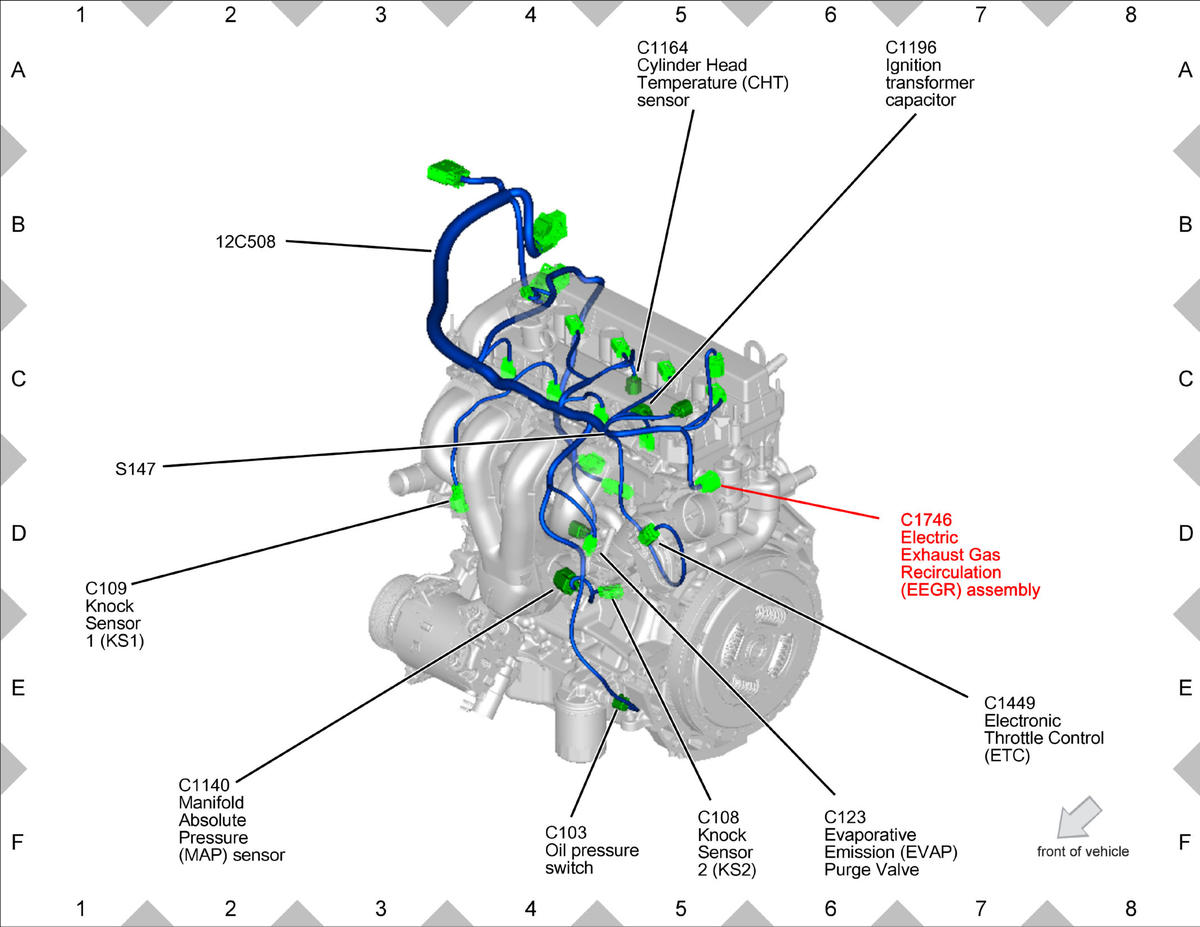

Electric Exhaust Gas Recirculation (EEGR) Assembly On Engine Left Front Side
Electric Exhaust Gas Recirculation (EEGR) Assembly On Engine Left Front Side
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
