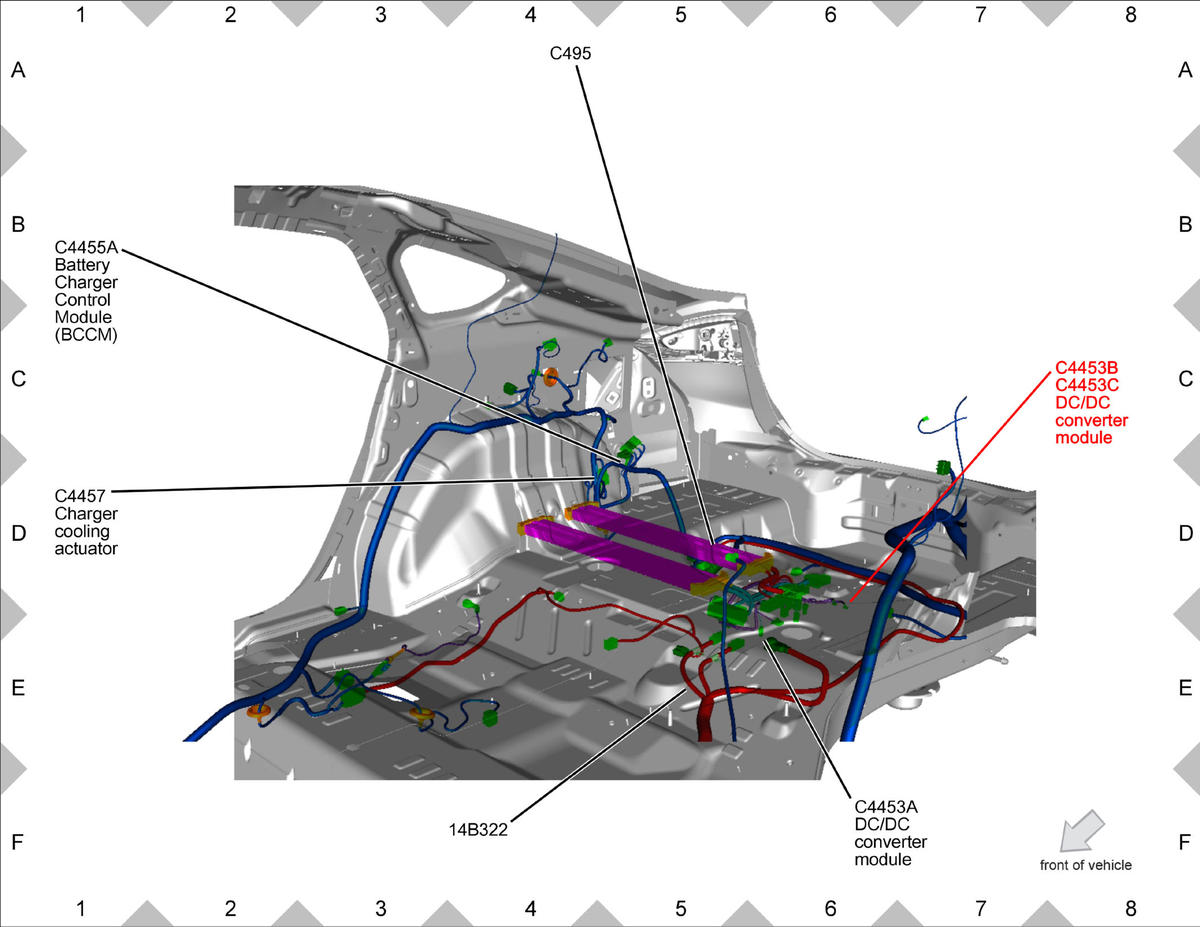

DCDC Converter Module Rear Of Vehicle Left Of Battery Packs 1

GFDWR70654Courtesy of FORD MOTOR COMPANY
