Home >> Ford >> 2019 >> Fusion Energi Titanium >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid/ENERGI) >> Component Location Charts By Components >> Body Control Module (BCM) (Fusion) 3

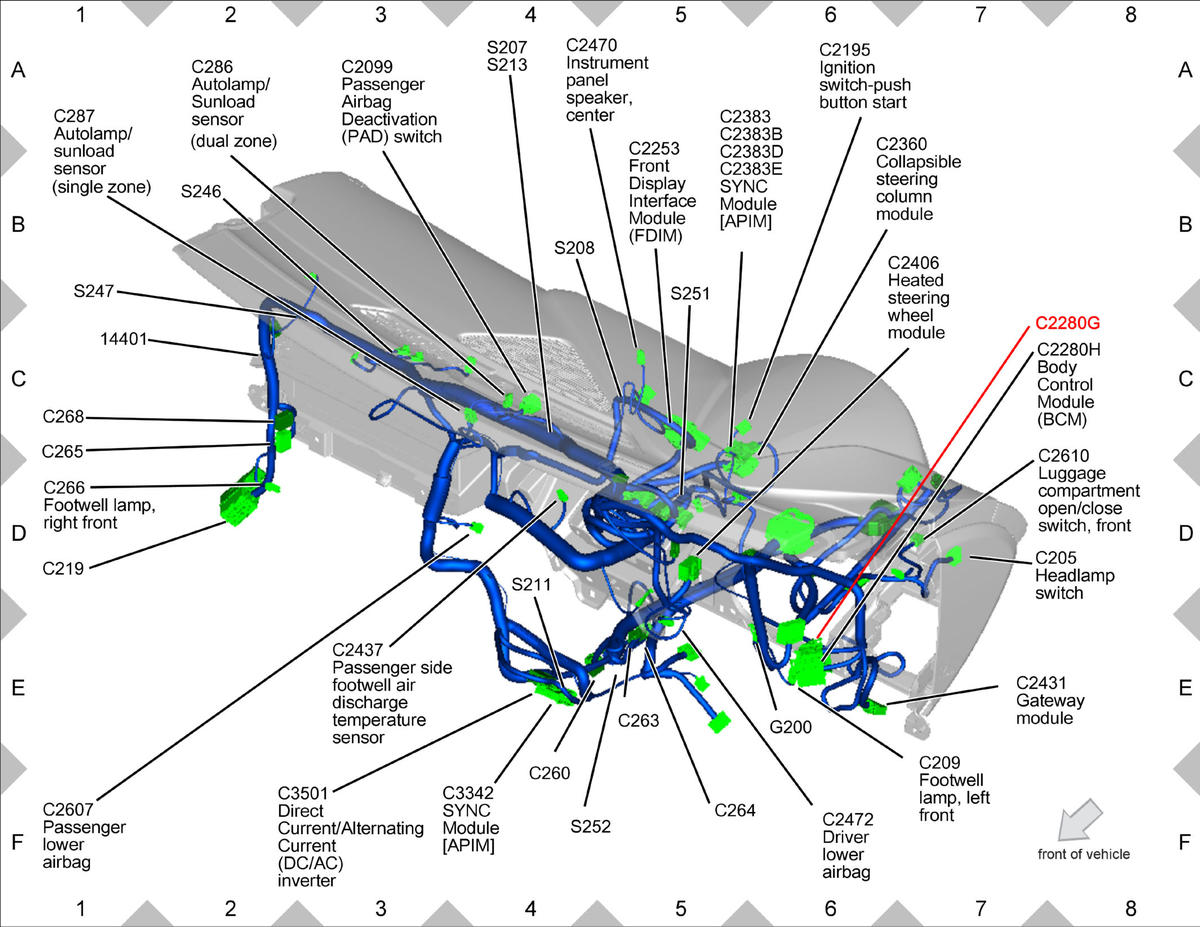

Body Control Module (BCM) (Fusion) 3

GFDWR70614

Courtesy of FORD MOTOR COMPANY
