OEM Component Harness Location Charts By Components (Hybrid/ENERGI)
>>
Component Location Charts By Components
>>

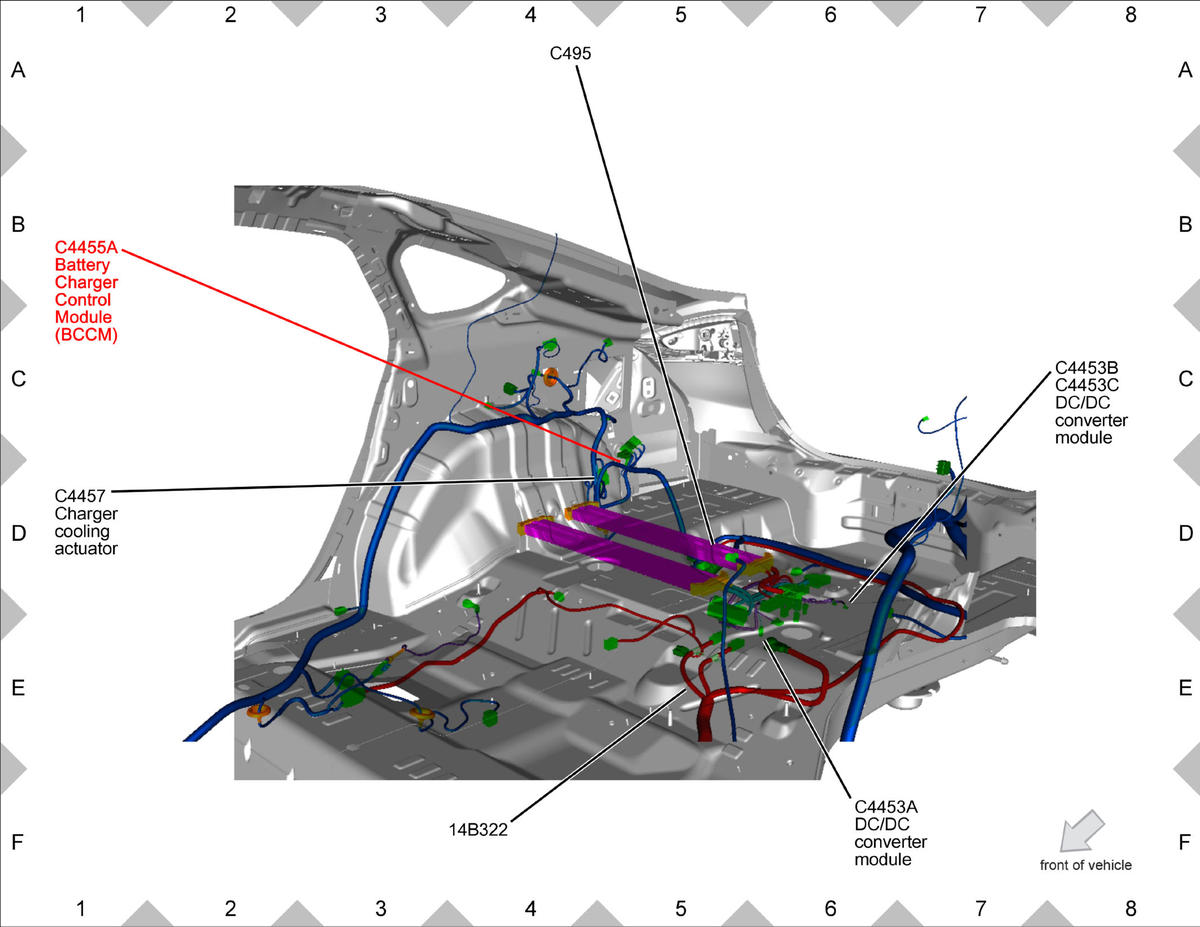

Battery Charger Control Module (BCCM) Right Rear Of Vehicle
Battery Charger Control Module (BCCM) Right Rear Of Vehicle
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
