Fender Splash Shield: Removal

NOTE: LH (left-hand) shown, RH (right-hand) similar.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

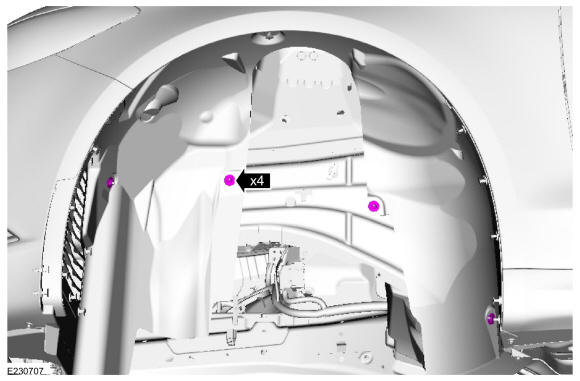

  2. Remove the nuts.
    GFD436874Courtesy of FORD MOTOR COMPANY

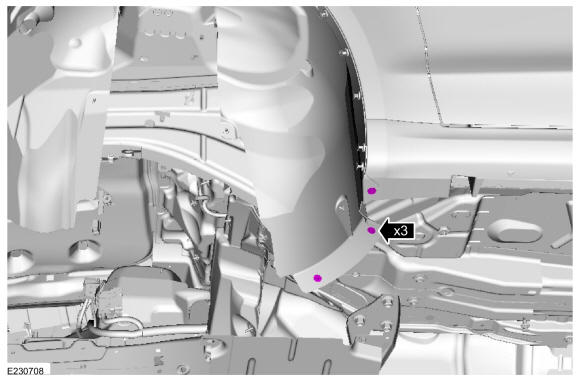

  3. Remove the screws.
    GFD436875Courtesy of FORD MOTOR COMPANY

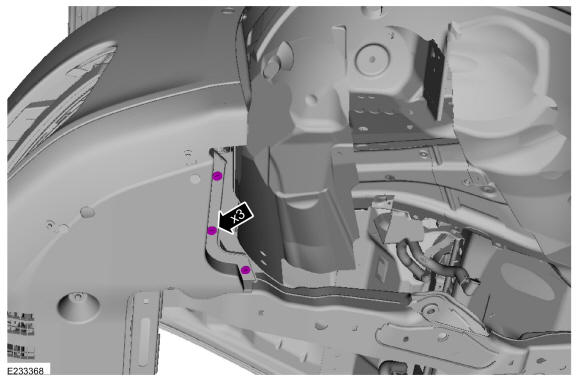

  4. Remove the screws.
    GFD436454Courtesy of FORD MOTOR COMPANY

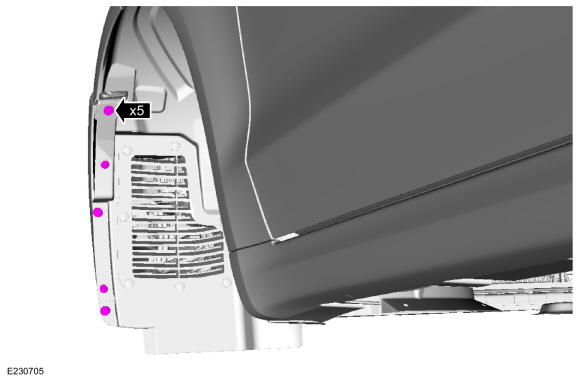

  5. Remove the screws.
    GFD436876Courtesy of FORD MOTOR COMPANY

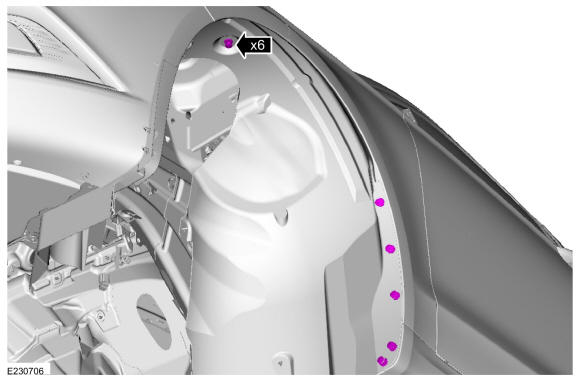

  6. Remove the pin-type retainers.
    GFD436877Courtesy of FORD MOTOR COMPANY

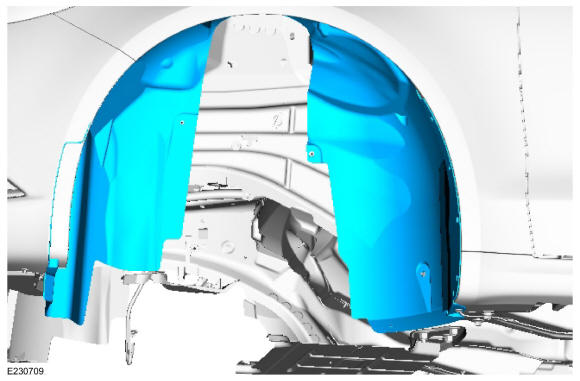

  7. Remove the fender splash shield.
GFD436878Courtesy of FORD MOTOR COMPANY
