Fender - Hybrid Electric Vehicle (HEV): Removal
NOTE:
HEV vehicle shown, PHEV similar.
NOTE:
LH shown, RH similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the fender splash shield. Refer to: Fender Splash Shield .
- PHEV vehicles remove the charge port light ring. Refer to: Charge Port Light Ring - Plug-In Hybrid Electric Vehicle (PHEV) .

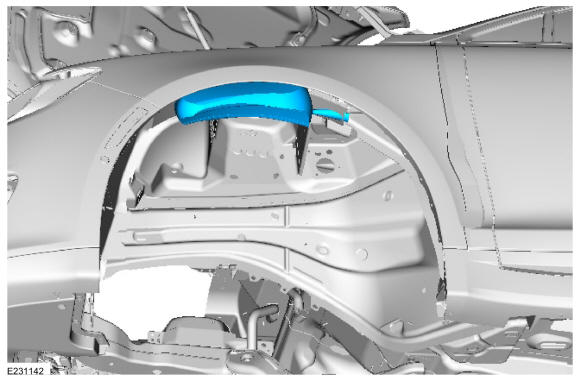

- Remove the fender insulation.
- Remove the fender baffle.
- Remove the rocker panel molding. Refer to: Rocker Panel Moulding .

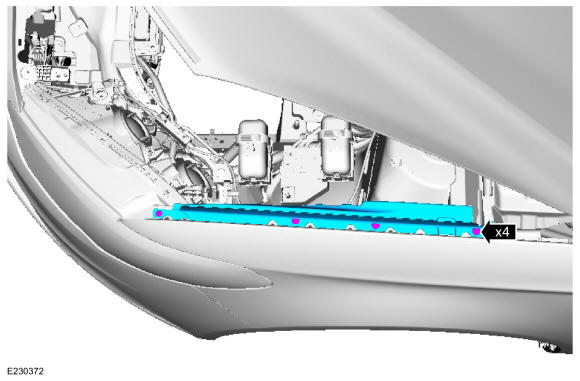

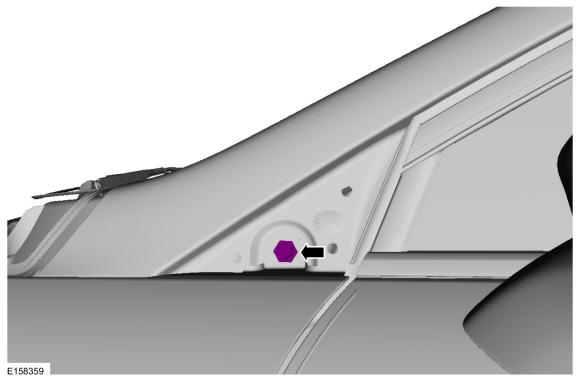

- Remove the bolt.
Torque:
80 lb.in (9 Nm)

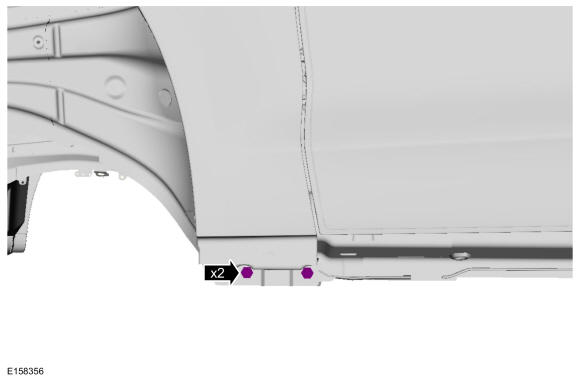

- Remove the bolts.
Torque:
80 lb.in (9 Nm)
- Release the retainers and remove the door frame molding.

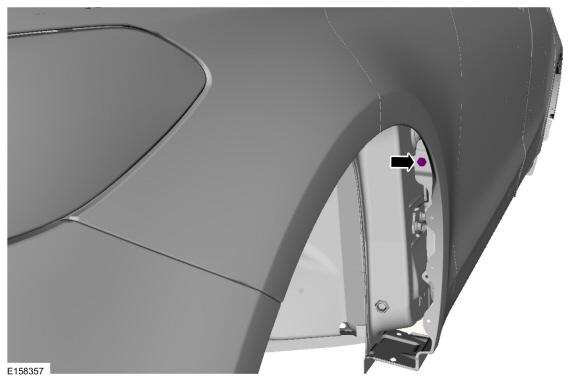

- Remove the bolt.
Torque:
80 lb.in (9 Nm)

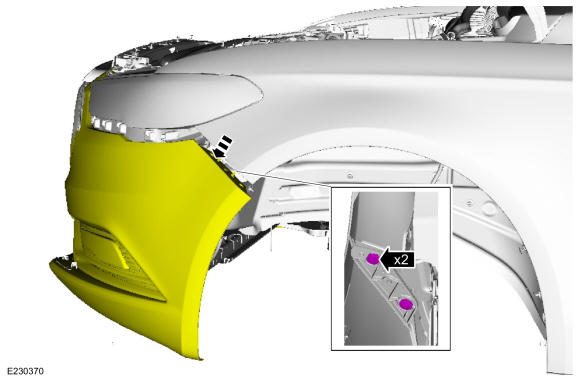

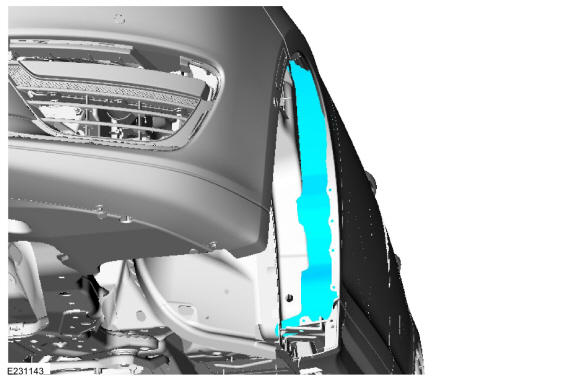

- Remove the fender-to-bumper cover bolts and position the bumper cover down.
Torque:
53 lb.in (6 Nm)

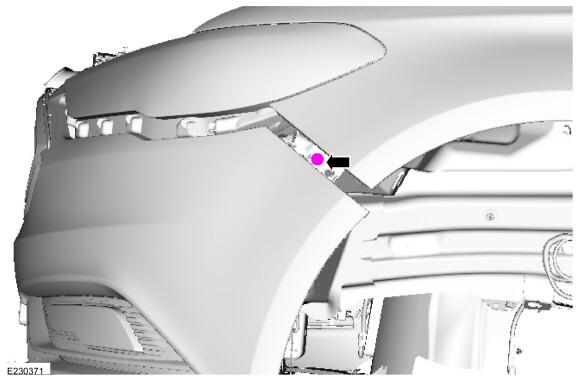

- Remove the front fender bracket bolt.
Torque:
80 lb.in (9 Nm)

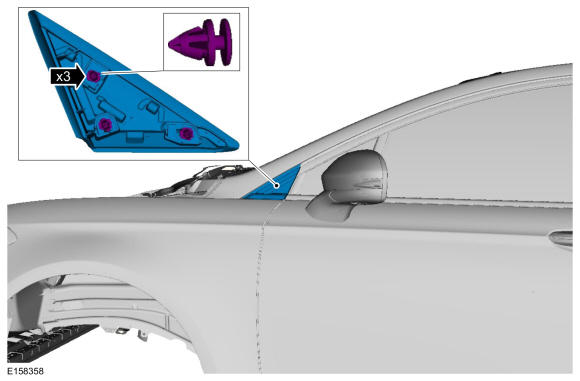

- Remove the pin-type retainers and the cowl filler panel.

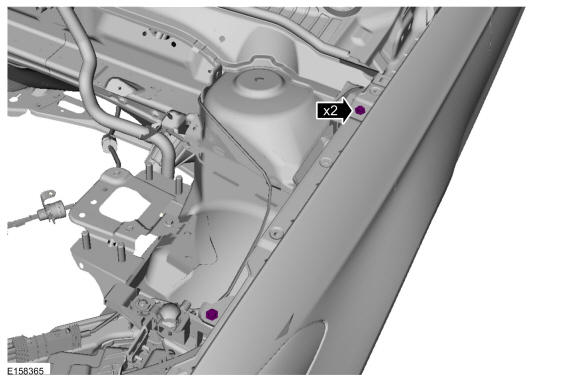

- Remove the bolts.
Torque:
80 lb.in (9 Nm)

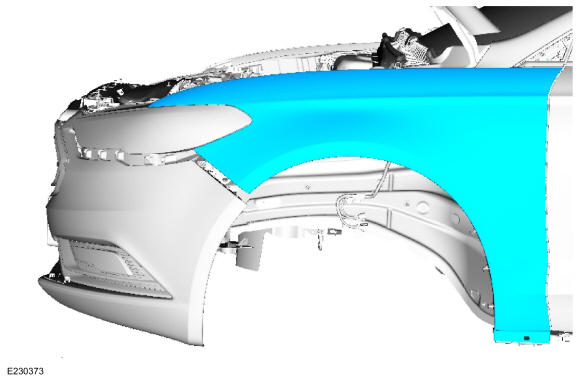

- Remove the fender.
