Engine Undershield

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

  1. Remove the screws, grommets and the engine front undershield.
    GFD436861Courtesy of FORD MOTOR COMPANY

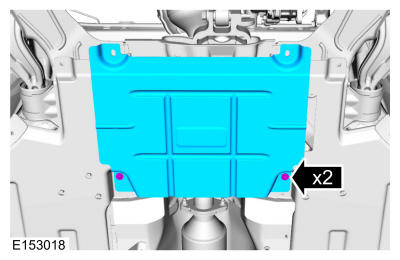

  2. Remove the screws and the engine undershield.
GFD436862Courtesy of FORD MOTOR COMPANY
