Engine Front Undershield
Engine Front Undershield
For information on Ford Color Coded Illustrations refer to
OEM COLOR CODING

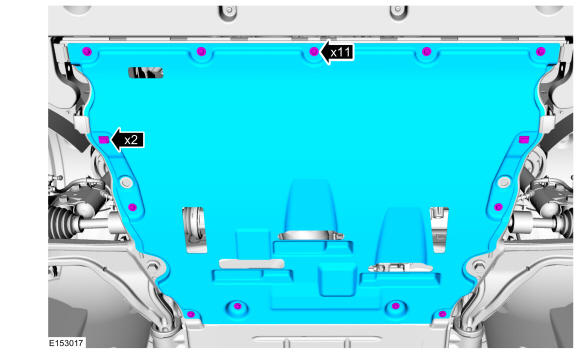

Remove the screws, grommets and the engine front undershield.
Courtesy of FORD MOTOR COMPANY
