Cowl Panel Grille: Removal

  1. Remove the windshield wiper pivot arms. Refer to: Windshield Wiper Pivot Arm .

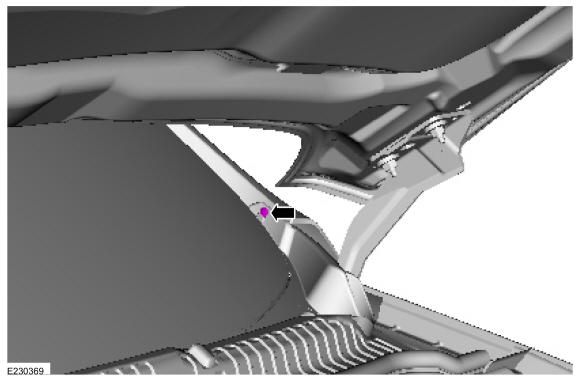

  2. On both sides. Remove the pin-type retainer.
    GFD436859Courtesy of FORD MOTOR COMPANY

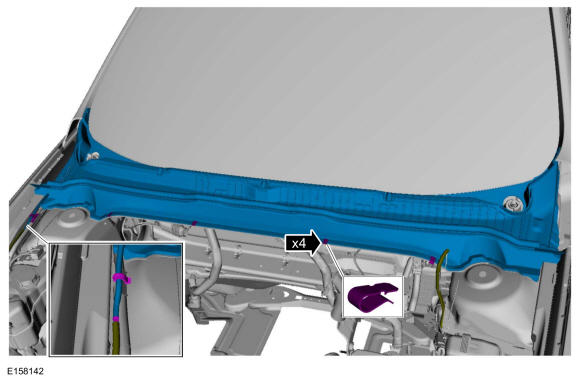

    • Detach the windshield washer hose coupling and the retainer.

    • Remove the clips and the cowl panel grille.

GFD436860Courtesy of FORD MOTOR COMPANY
