Active Grille Shutter: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .

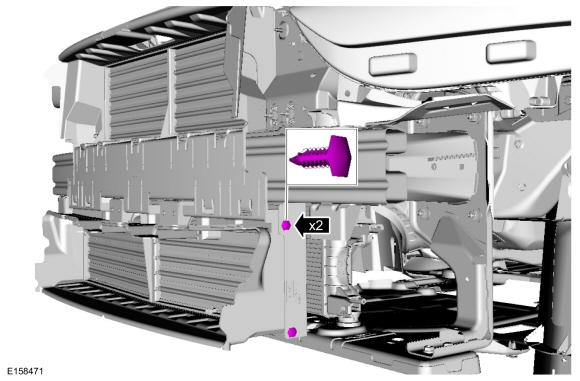

On both sides. Remove the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

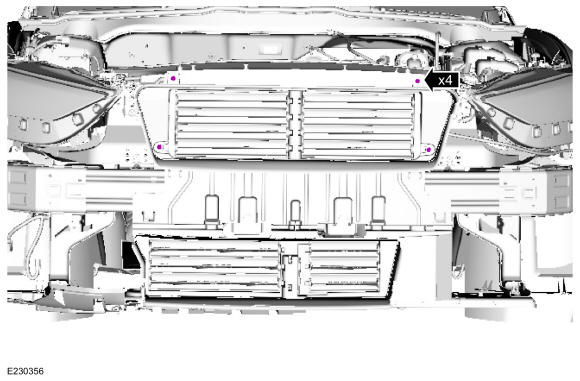

Remove the bolts.
Torque:

53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

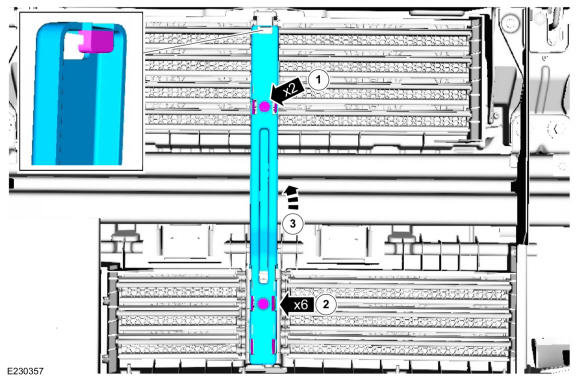

1. Remove the bolts.
2. Release the retaining tabs.
3. Lift up and remove the bridge link.
Courtesy of FORD MOTOR COMPANY

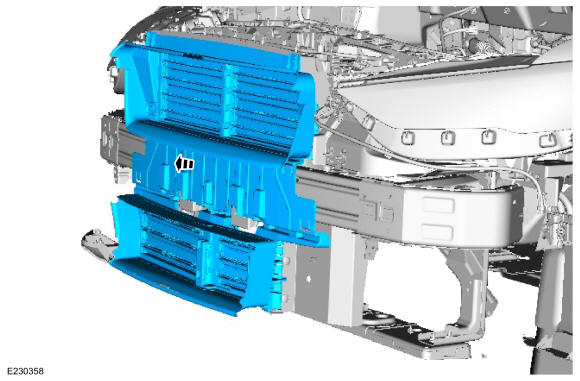

Remove the active grille shutter.

Courtesy of FORD MOTOR COMPANY
