Rear Bumper: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

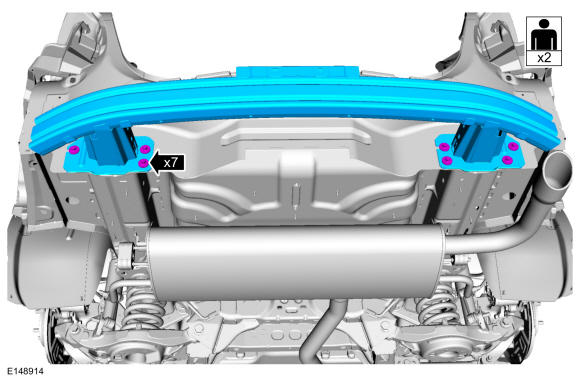

  2. Remove the bolts and the rear bumper.

    Torque: 22 lb.ft (30 Nm)

GFD437442Courtesy of FORD MOTOR COMPANY
