Front Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front wheels and tires. Refer to: Wheel and Tire .

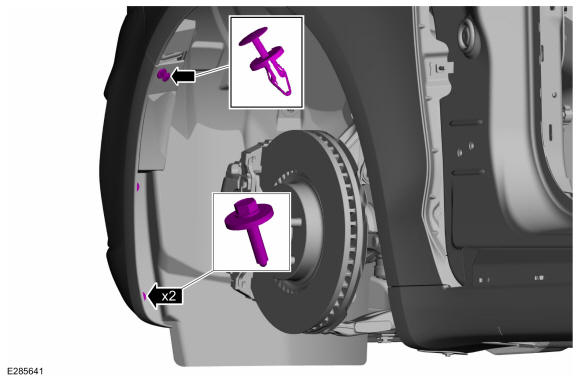

  2. On both sides. Remove the rivet push pin and the screws from the front of the fender liner.
    GFD437431Courtesy of FORD MOTOR COMPANY

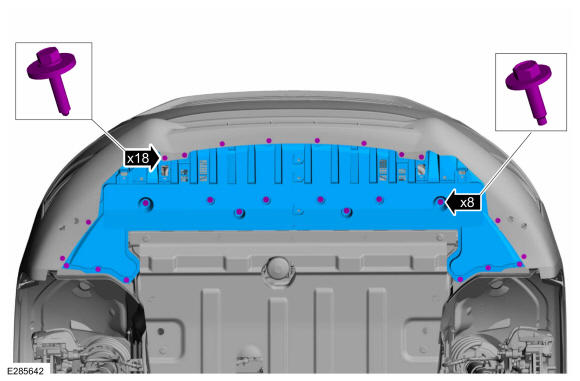

  3. Remove the screws and the lower radiator closeout.
    GFD437432Courtesy of FORD MOTOR COMPANY

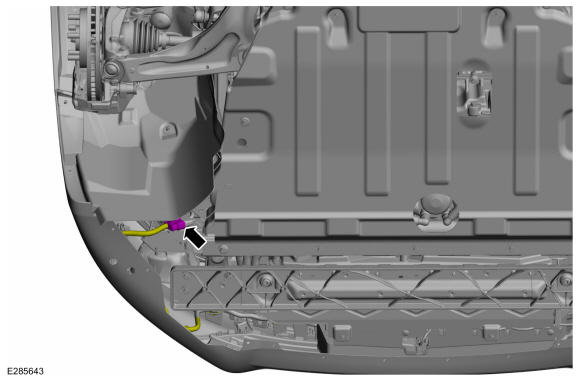

  4. Disconnect the electrical connector.
    GFD437433Courtesy of FORD MOTOR COMPANY

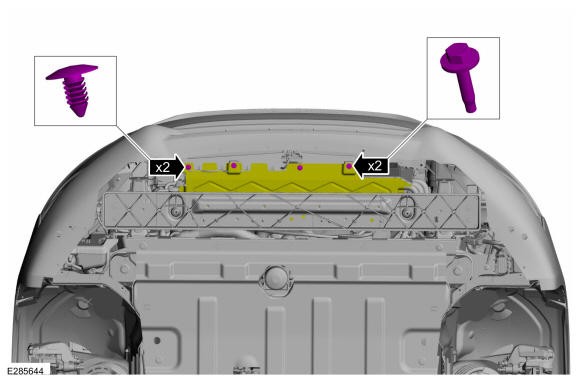

  5. If equipped. Remove the pin-type retainers, the screws and position the air deflector down.
    GFD437434Courtesy of FORD MOTOR COMPANY

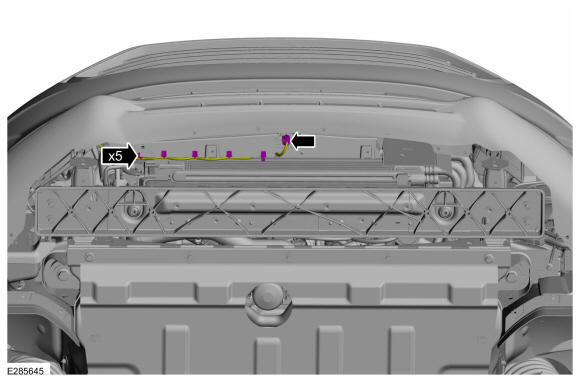

  6. If equipped. Disconnect the electrical connector and release the wiring harness guides.
    GFD437435Courtesy of FORD MOTOR COMPANY

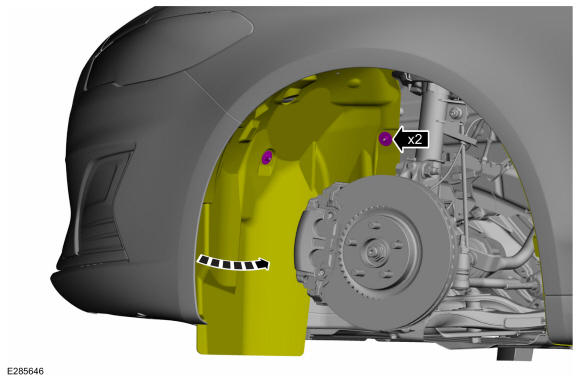

  7. Remove the nuts and position the fender liner aside.
    GFD437436Courtesy of FORD MOTOR COMPANY

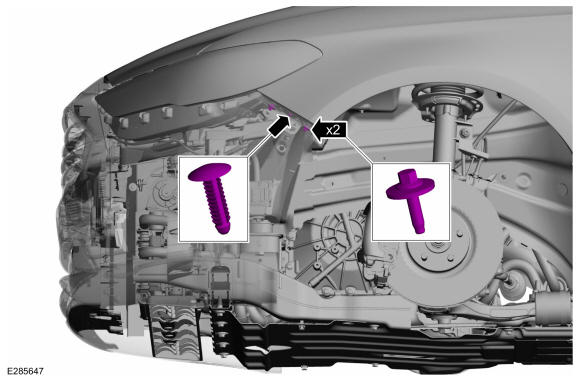

  8. Remove the front bumper cover-to-fender bolts and the push pin.
    GFD437437Courtesy of FORD MOTOR COMPANY

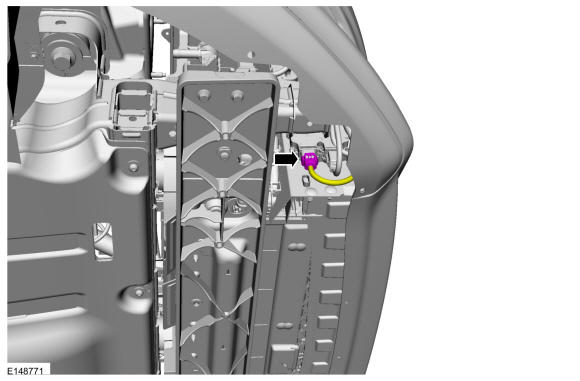

  9. If equipped. Disconnect the electrical connector.
    GFD437438Courtesy of FORD MOTOR COMPANY

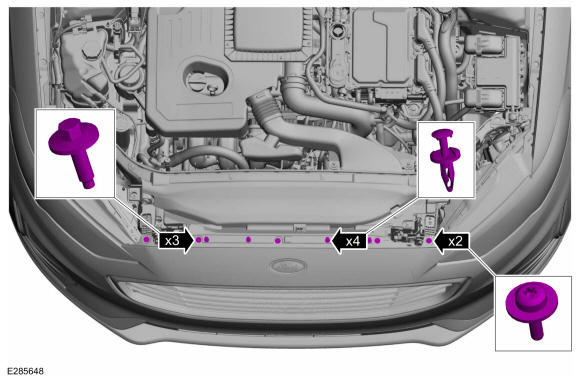

  10. Remove the upper front bumper cover bolts, the screws and the push pins.
    GFD437439Courtesy of FORD MOTOR COMPANY

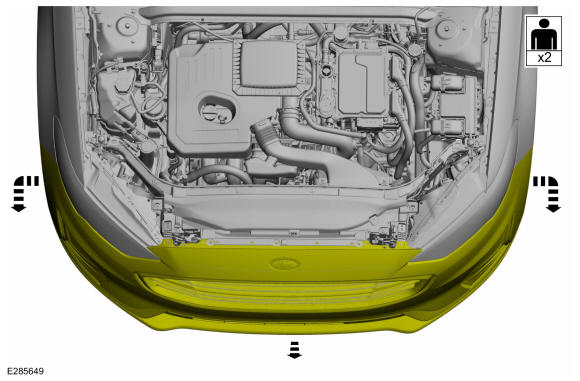

  11. With the help of assistant. Release the sides of the front bumper cover from the brackets and position forward.
    GFD437440Courtesy of FORD MOTOR COMPANY
  12. Remove the front bumper cover.

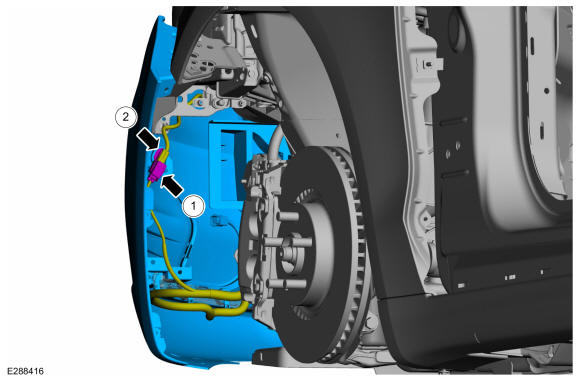

    1. Disconnect the electrical connector.
    2. Detach the wiring harness retainer and remove the front bumper cover.

GFD437441Courtesy of FORD MOTOR COMPANY
