Rear Bumper Cover: Disassembly

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .
  2. Remove the rear active parking assist sensors. Refer to: Rear Active Park Assist Sensors .
  3. Remove the rear parking aid sensors. Refer to: Rear Parking Aid Sensor .
  4. Release the tabs and remove the center rear bumper cover.
    GFD437463Courtesy of FORD MOTOR COMPANY

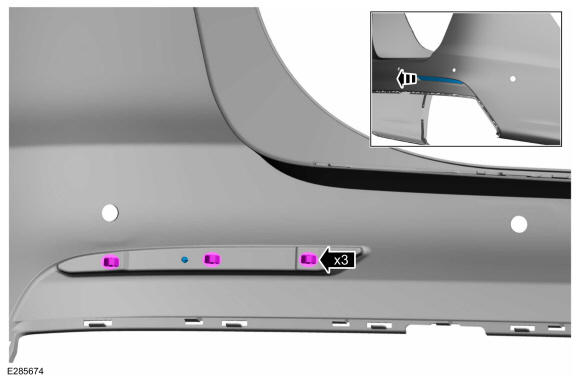

  5. On both sides. Release the tabs and remove the rear bumper cover reflector.
GFD437464Courtesy of FORD MOTOR COMPANY
