Rear Head Restraint Guide Sleeve: Installation
-
NOTE: Make sure the holes in the backrest cover and backrest foam pad are aligned to the holes in the backrest frame.

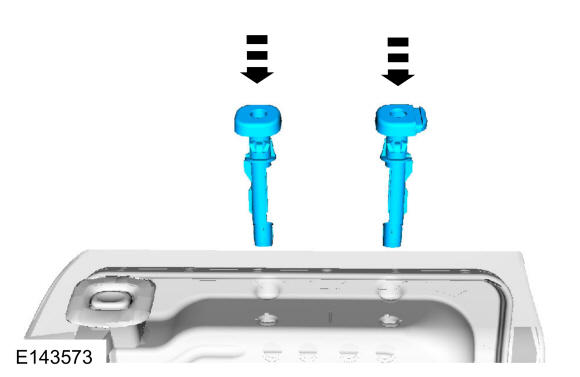

Install the head restraint guide sleeves.
- By hand, pull upward on the head restraint guide sleeves and make sure they are properly locked into the backrest frame holes. If either of the head restraint guide sleeves can be removed by hand, repeat the installation procedure. If the head restraint guide sleeve(s) can be removed again after installing a second time, install a new head restraint guide sleeve(s).
- Install the head restraint.
