Front Seat: Installation

  1. Install the front seat and tighten the bolts in the sequence shown in illustration.

    Torque: 35 lb.ft (47.5 Nm)

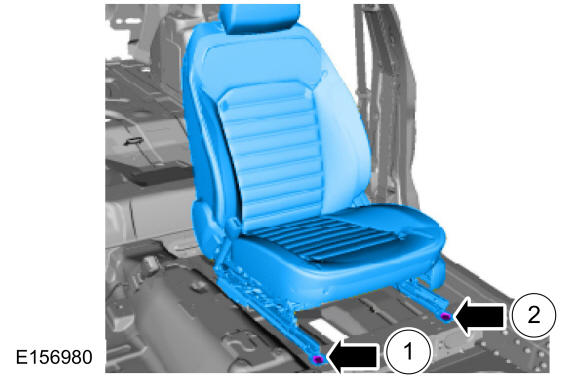

    Fig 1: Front Seat Bolts Tightening Sequence
    GFD437110Courtesy of FORD MOTOR COMPANY

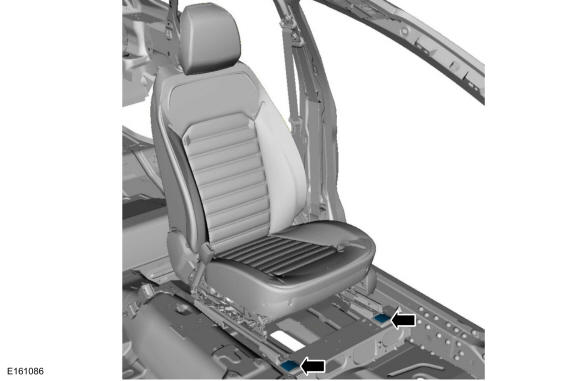

  2. Install the front seat bolt caps.
    GFD437107Courtesy of FORD MOTOR COMPANY

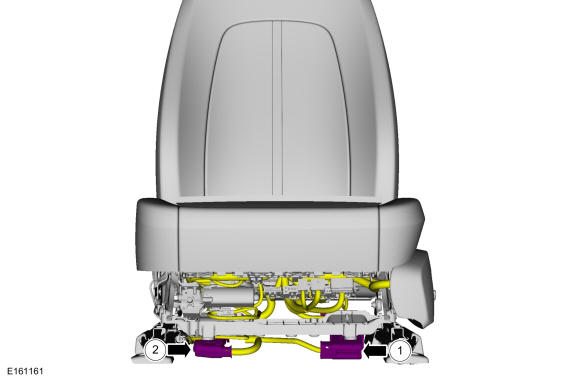

    1. Connect the wiring harness electrical connector.
    2. If equipped. Connect the heated seat wiring harness electrical connector.
    GFD437111Courtesy of FORD MOTOR COMPANY
  4. If the SRS has been depowered, repower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
  5. Position the seat forward to access the seat rear bolts and tighten the bolts in the sequence shown in illustration.

    Torque: 35 lb.ft (47.5 Nm)

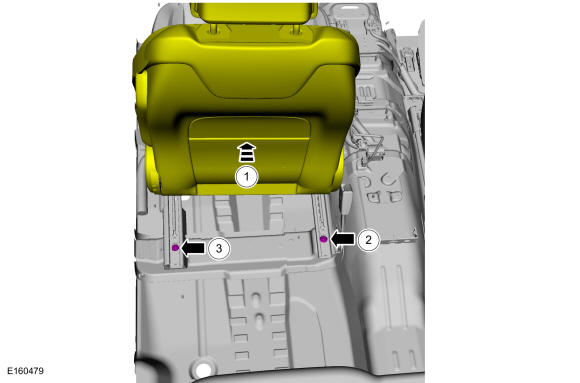

Fig 2: Rear Seat Bolts Tightening Sequence
GFD437112Courtesy of FORD MOTOR COMPANY
