Front Seat Lumbar Assembly: Removal

All seats

1. Remove the front seat. Refer to: Front Seat .
2. • If equipped. Release the lumbar knob retaining clip and remove the lumbar knob.
   • If equipped. Release the height adjust handle locking tab and remove the height adjust handle.
   • If equipped. Release the recline handle retaining clip and remove the recline handle.

   Courtesy of FORD MOTOR COMPANY

3. Remove the side shield screws.

   Courtesy of FORD MOTOR COMPANY

4. Remove the side shield.
   1. Lift up on the rear of the side shield and pull outward.
   2. Push the side shield forward.
   3. If equipped. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Power seat shown in illustration, others similar.

   Detach the electrical connector retainers and position the wire harnesses aside.

   Courtesy of FORD MOTOR COMPANY

6. Detach the backrest cover straps and position the backrest cover upward.

   Courtesy of FORD MOTOR COMPANY

7. 1. Remove the pin-type retainers.
   2. Detach the hook-and-loop strips.
   3. Lift the backrest cover flap.

   Courtesy of FORD MOTOR COMPANY

   Vehicles without police seats

8. Remove the backrest cover insert.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with police seats

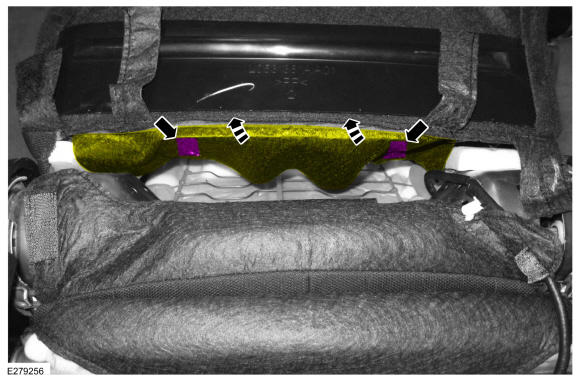

9. Detach the hook-and-loop strips and open the backrest trim cover flap.

   Courtesy of FORD MOTOR COMPANY

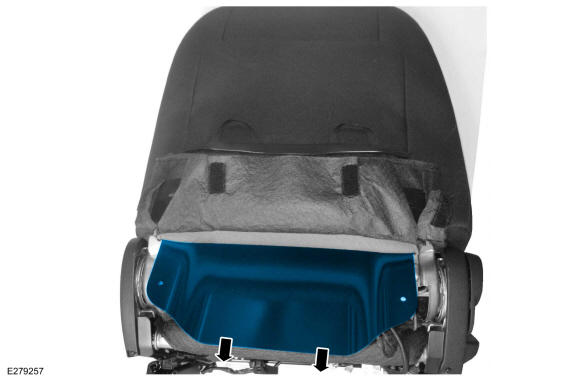

10. Remove the stab shield.

    Courtesy of FORD MOTOR COMPANY

    All seats

11. Position the front seat backrest cover.
    1. Release the J-clip.
    2. Position the backrest cover from between the seat cushion and backrest cushion.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Non-police seat shown in illustration, police seat similar.
    1. NOTE: Use care when separating the backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the backrest foam.

       Release the hook-and-loop strips.

    2. Invert the backrest cover up to access the rear J-clips.

    Courtesy of FORD MOTOR COMPANY

13. Remove the pin-type retainers from the deployment chute wrap and begin feeding it through the backrest foam.

    Courtesy of FORD MOTOR COMPANY

14. Pull the deployment chute wrap out of the backrest foam.

    Courtesy of FORD MOTOR COMPANY

    Vehicles without police seats

15. Lift the backrest cover and release the J-clips from the lumbar wires and backrest frame.

    Courtesy of FORD MOTOR COMPANY

    All seats

16. Position the manual lumbar assembly cable away from the seat track.
    • Disconnect the cable from the manual lumbar actuator.
    • Detach the cable retainers from the seat track.

    Courtesy of FORD MOTOR COMPANY

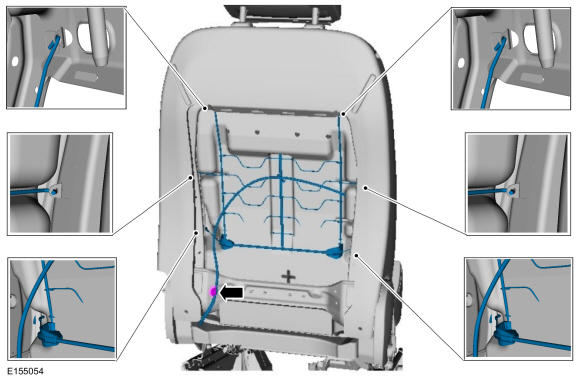

17. Remove the lumbar assembly.
    • Release the lumbar assembly cable retainer.
    • Detach the lumbar assembly J-hooks.

Courtesy of FORD MOTOR COMPANY
