Seat Heater Mat Installation

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Repair

multimedia:A supplement to the article is available.

View

NOTE: Always install a new heater mat.
NOTE: During installation, it is allowable to adhere a new heater mat to any adhesive left behind on the foam.
NOTE: During installation, make sure the heater mat doesn't have any folds or creases that the customer may feel when sitting in the seat.
NOTE: Typical seat cushion foam and heater mat shown in illustration, other seat cushion/backrest foam and heater mats are similar.

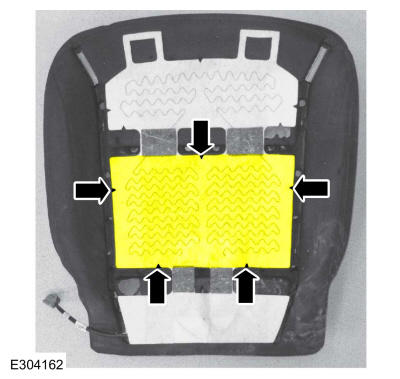

  1. Position the heater mat onto the foam so that the center section of the heater mat aligns to the center section of the foam.

    • Find the locator marks in the foam and ensure the heater mat aligns to them as closely as possible.

    GFD437069Courtesy of FORD MOTOR COMPANY

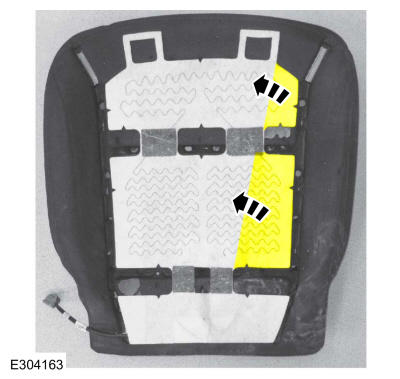

  2. Turn the RH upper and middle sections of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD437070Courtesy of FORD MOTOR COMPANY

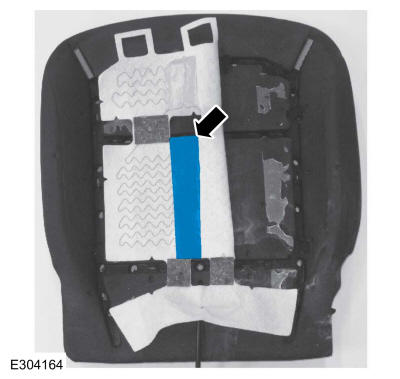

  3. Remove the heater mat adhesive paper overlay.
    GFD437071Courtesy of FORD MOTOR COMPANY

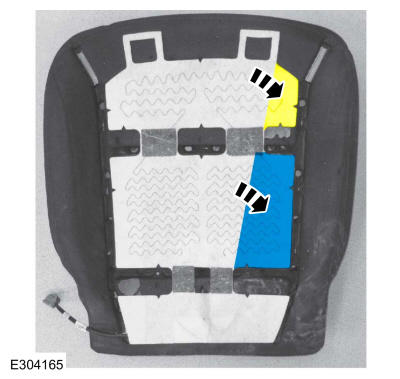

  4. Position the RH upper and middle sections of the heater mat back over and adhere the middle section of the heater mat to the middle section of the foam making sure it's aligned to the foam as in the previous step.
    GFD437072Courtesy of FORD MOTOR COMPANY

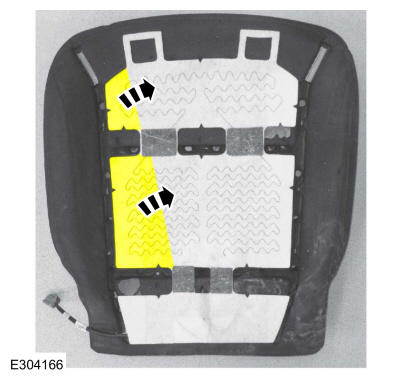

  5. Turn the LH upper and middle sections of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD437073Courtesy of FORD MOTOR COMPANY

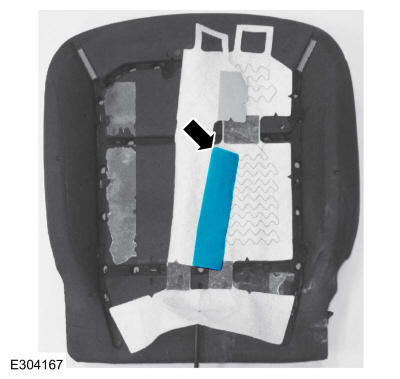

  6. Remove the heater mat adhesive paper overlay.
    GFD437074Courtesy of FORD MOTOR COMPANY

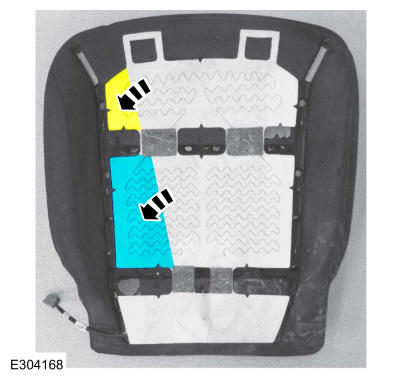

  7. Position the LH upper and middle sections of the heater mat back over and adhere the middle section of the heater mat to the middle section of the foam making sure they're aligned as in the previous step.
    GFD437075Courtesy of FORD MOTOR COMPANY

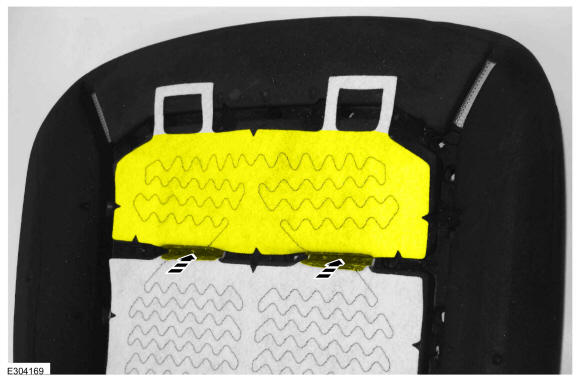

  8. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

    If required, tuck the heater mat into the foam trench.

    GFD437076Courtesy of FORD MOTOR COMPANY

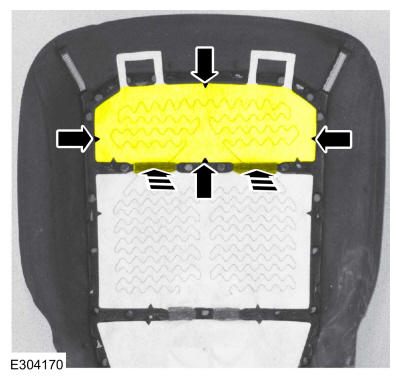

  9. While keeping the heater mat tucked (if required) in the foam trench, position the heater mat onto the foam so that the front section of the heater mat aligns to the front section of the foam.

    • Find the locator marks in the foam and ensure the heater mat aligns to them as closely as possible.

    GFD437077Courtesy of FORD MOTOR COMPANY

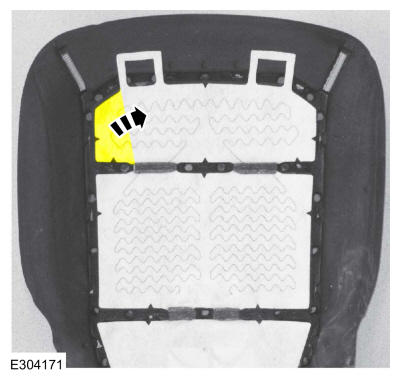

  10. Turn the LH front section of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD437078Courtesy of FORD MOTOR COMPANY

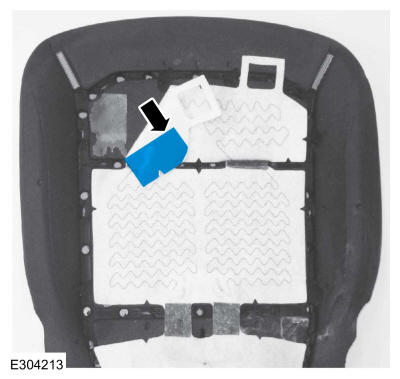

  11. Remove the heater mat adhesive paper overlay.
    GFD437079Courtesy of FORD MOTOR COMPANY

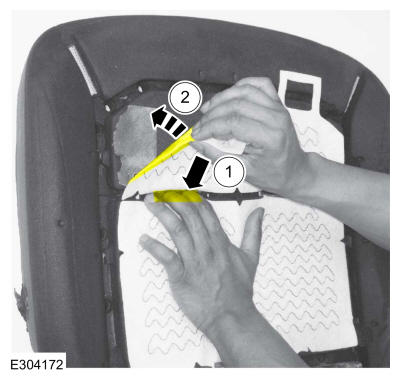

    1. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

      If required, hold the heater mat in position and tucked in the trench.

    2. Position the LH front section of the heater mat back over and adhere the heater mat to the foam making sure it's aligned to the foam as in the previous step.
    GFD437080Courtesy of FORD MOTOR COMPANY

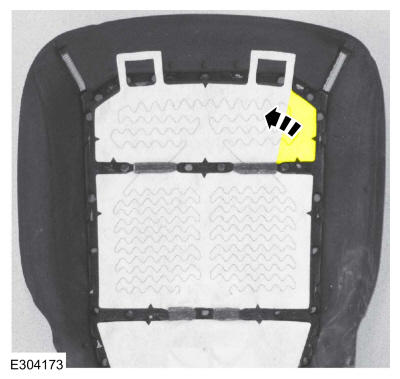

  13. Turn the RH front section of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD437081Courtesy of FORD MOTOR COMPANY

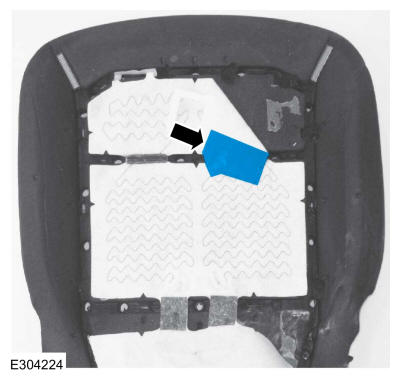

  14. Remove the heater mat adhesive paper overlay.
    GFD437082Courtesy of FORD MOTOR COMPANY

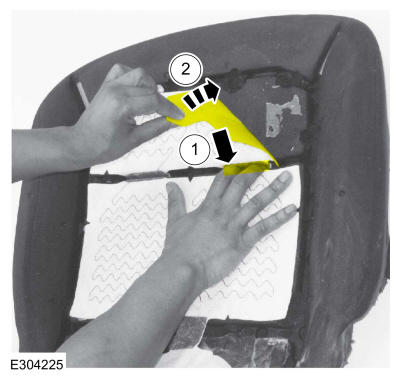

    1. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

      If required, hold the heater mat in position and tucked in the trench.

    2. Position the RH front section of the heater mat back over and adhere the heater mat to the foam making sure it's aligned to the foam as in the previous step.
    GFD437083Courtesy of FORD MOTOR COMPANY

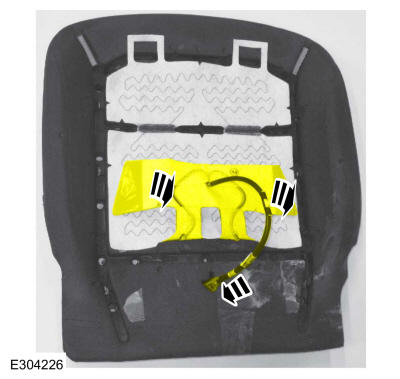

  16. NOTE: Location will vary by vehicle.

    If required  , feed the heater mat wiring pigtail through the foam opening while positioning the rear section of the heater mat back over on the foam.

    GFD437084Courtesy of FORD MOTOR COMPANY

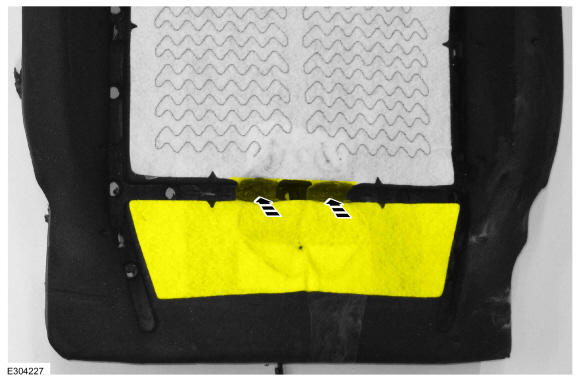

  17. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

    If required, tuck the heater mat into the foam trench.

    GFD437085Courtesy of FORD MOTOR COMPANY

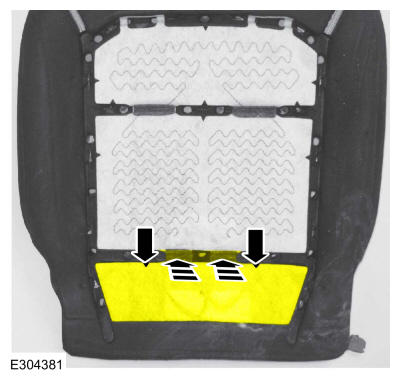

  18. While keeping the heater mat tucked (if required) in the foam trench, position the heater mat onto the foam so that the rear section of the heater mat aligns to the rear section of the foam.

    • Find the locator marks in the foam and ensure the heater mat aligns to them as closely as possible.

    GFD437086Courtesy of FORD MOTOR COMPANY

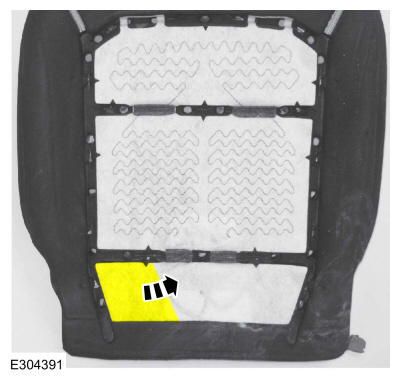

  19. Turn the LH rear section of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD437087Courtesy of FORD MOTOR COMPANY

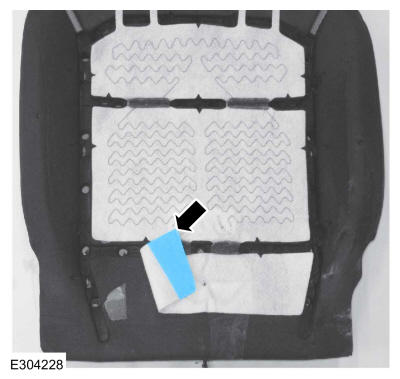

  20. Remove the heater mat adhesive paper overlay.
    GFD437088Courtesy of FORD MOTOR COMPANY

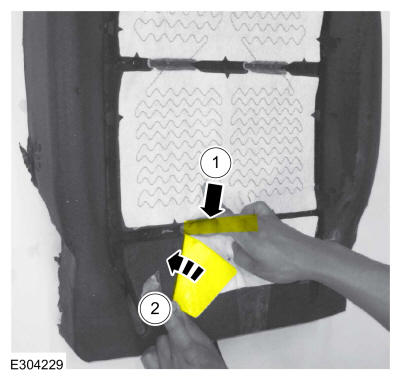

    1. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

      If required, hold the heater mat in position and tucked in the trench.

    2. Position the LH rear section of the heater mat back over and adhere the heater mat to the foam making sure it's aligned to the foam as in the previous step.
    GFD437089Courtesy of FORD MOTOR COMPANY

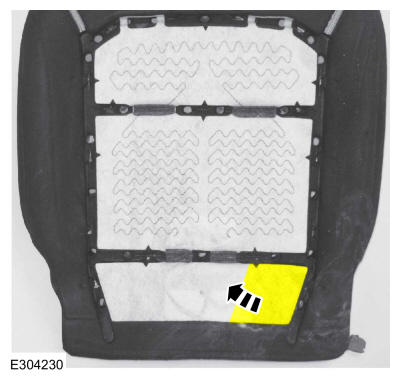

  22. Turn the RH rear section of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD437090Courtesy of FORD MOTOR COMPANY

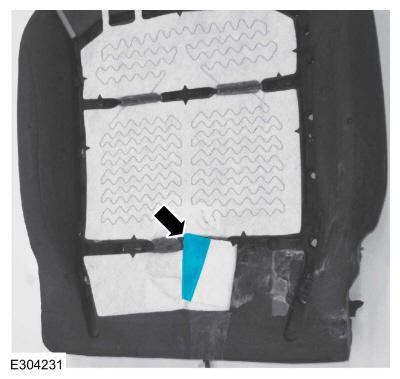

  23. Remove the heater mat adhesive paper overlay.
    GFD437091Courtesy of FORD MOTOR COMPANY

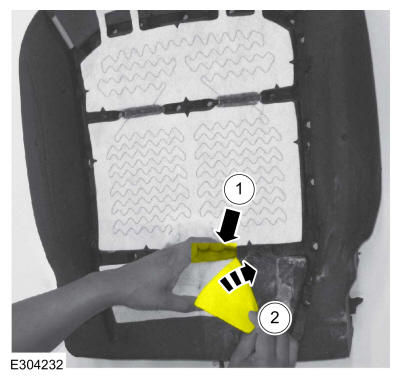

    1. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

      If required, hold the heater mat in position and tucked in the trench.

    2. Position the RH rear section of the heater mat back over and adhere the heater mat to the foam making sure it's aligned to the foam as in the previous step.
    GFD437092Courtesy of FORD MOTOR COMPANY

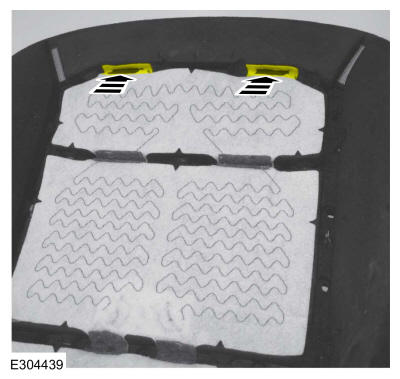

  25. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

    If required, tuck the heater mat into the front trench.

    GFD437093Courtesy of FORD MOTOR COMPANY
  26. Install the seat cushion or backrest cover. Refer to the appropriate procedure in this service information or one of the other in appropriate seat article(s) .
