Information and Entertainment System - Component Location

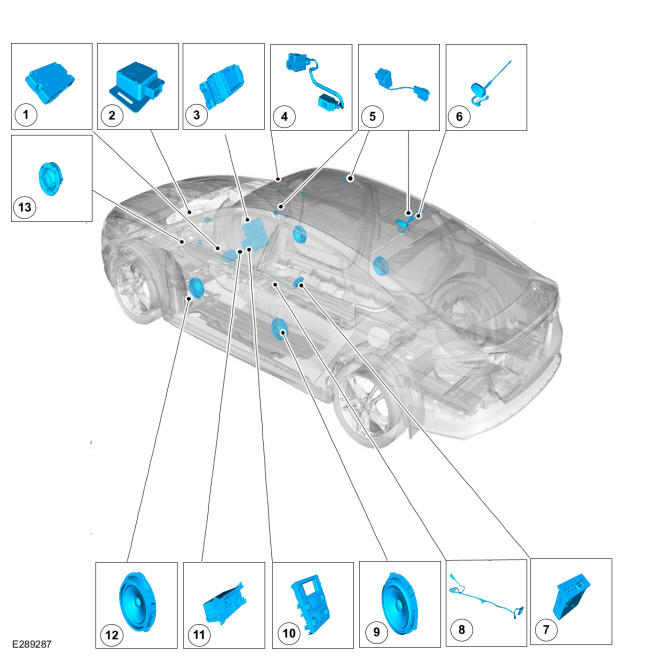

GFD436634Courtesy of FORD MOTOR COMPANY
Item Description
1 APIM
2 GPSM
3 FCDIM
4 SYNC® microphone
5 Active noise control microphones - HEV
6 AM/ FM Antenna
7 USB port
8 USB cable
9 Speaker - rear door
10 FCIM
11 ACM
12 Speaker - front door
13 Speaker - front door tweeter
