Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this information, refer to HEALTH AND SAFETY PRECAUTIONS General Information. Failure to follow this instruction may result in serious personal injury.
  2. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
  3. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
  4. Recover the refrigerant. Refer to: AIR CONDITIONING (A C) SYSTEM RECOVERY, EVACUATION AND CHARGING - VEHICLES WITH: R1234YF REFRIGERANT Climate Control System - General Information).
  5. Remove the air cleaner. Refer to: AIR CLEANER Air Cleaner (303-12M).

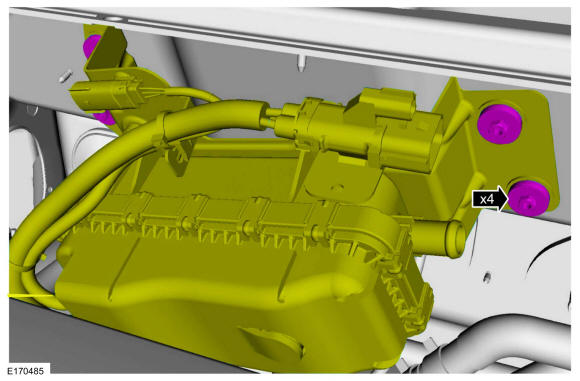

  6. NOTE: If equipped.
    GFD437260Courtesy of FORD MOTOR COMPANY

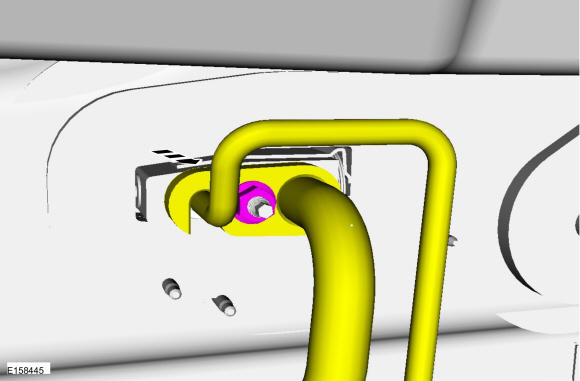

  7. NOTE: Make sure all openings are sealed.
    GFD437261Courtesy of FORD MOTOR COMPANY
  8. GFD437262Courtesy of FORD MOTOR COMPANY
    GFD199400Courtesy of FORD MOTOR COMPANY
    WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
    GFD437263Courtesy of FORD MOTOR COMPANY

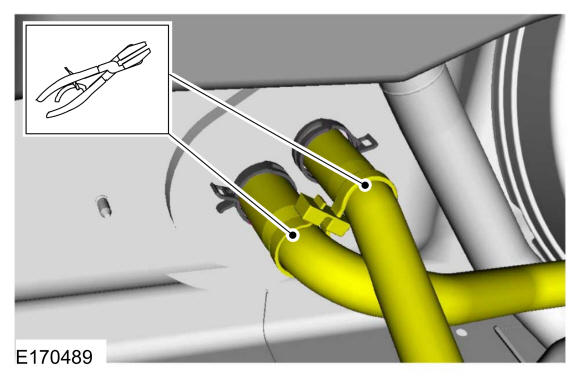

  9. NOTE: Be prepared to collect escaping fluid.
    GFD437264Courtesy of FORD MOTOR COMPANY
  10. On both sides, remove the front door. Refer to: Front Door .
  11. Remove the bolts, nuts, release the harenss retainers and remove the plate.
    GFD436648Courtesy of FORD MOTOR COMPANY

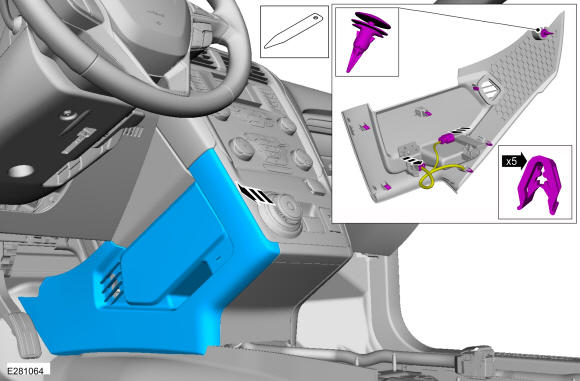

  12. Release the clips and remove the LH lower trim panel.
    GFD437265Courtesy of FORD MOTOR COMPANY

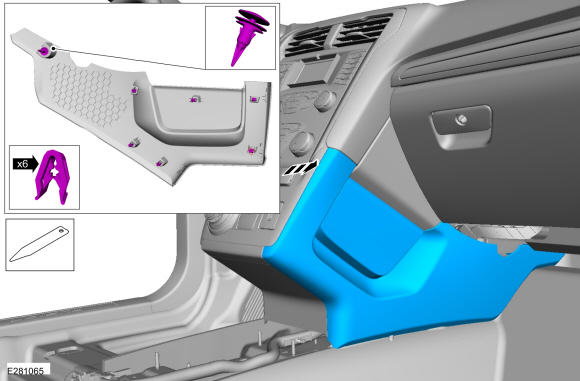

  13. Release the clips and remove the RH lower trim panel. Use the General Equipment: Interior Trim Remover
    GFD437266Courtesy of FORD MOTOR COMPANY

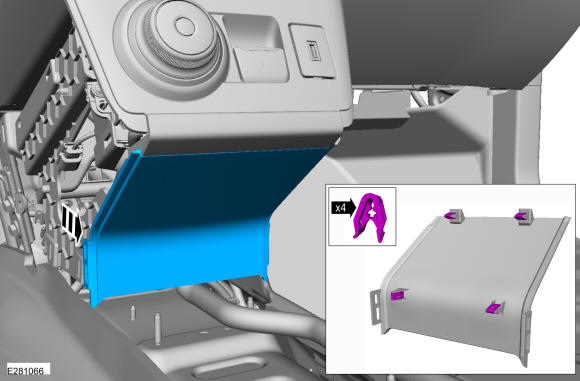

  14. Release the clips and remove the center lower trim panel.
    GFD436651Courtesy of FORD MOTOR COMPANY

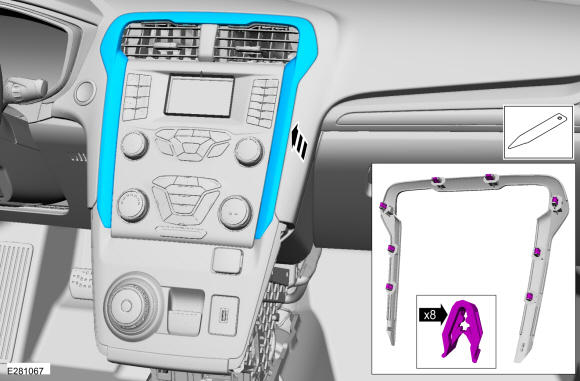

  15. Release the clips and remove the center stack trim panel.. Use the General Equipment: Interior Trim Remover
    GFD437267Courtesy of FORD MOTOR COMPANY

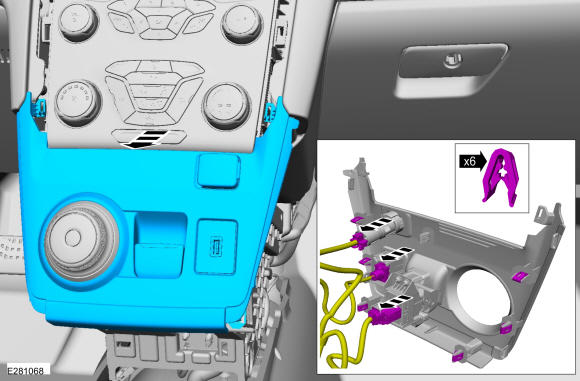

  16. Release the clips and remove the selector trim panel.
    GFD437268Courtesy of FORD MOTOR COMPANY

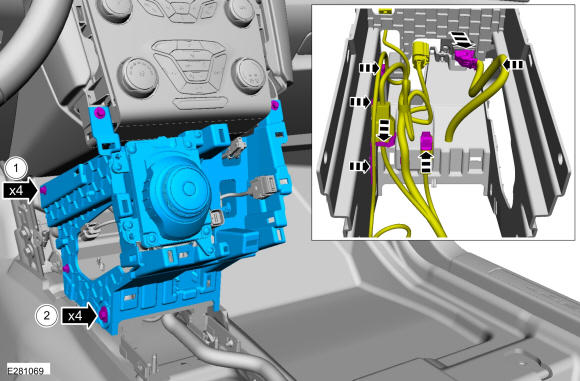

  17. Remove bolts, disconnect the electrical connectrs, release the harness retainers and remove the selector mounting bracket.
    GFD437269Courtesy of FORD MOTOR COMPANY

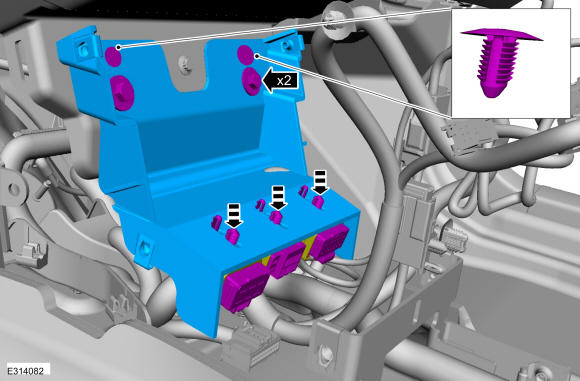

  18. Remove the bolts, detach the harness push pins, bracket push pins and remove the bracket.
    GFD437270Courtesy of FORD MOTOR COMPANY
  19. Remove the floor console. Refer to: Floor Console .
  20. If equipped, remove the selector lever assembly.
  21. If equipped, remove the gearshift lever.

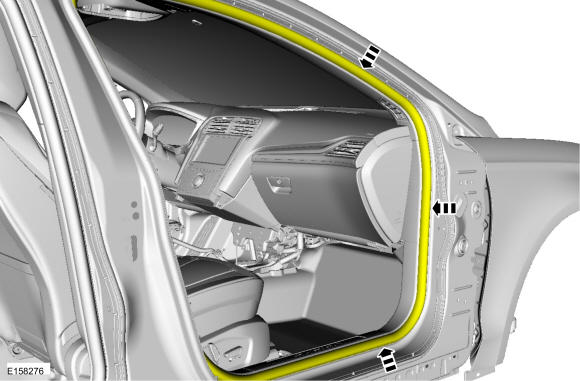

  22. On both sides. Position the front door weatherstrip aside.
    GFD437271Courtesy of FORD MOTOR COMPANY

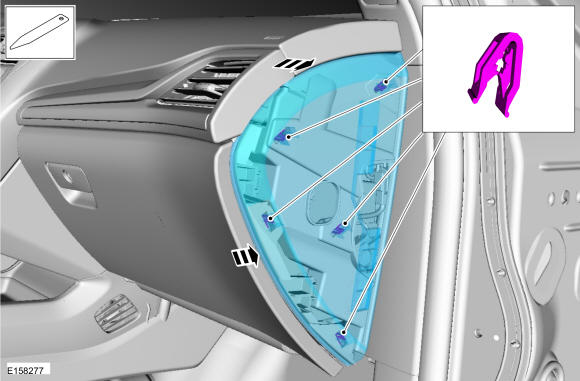

  23. On both sides. Release the clips and remove the instrument panel side trim panel. Use the General Equipment: Interior Trim Remover
    GFD437257Courtesy of FORD MOTOR COMPANY

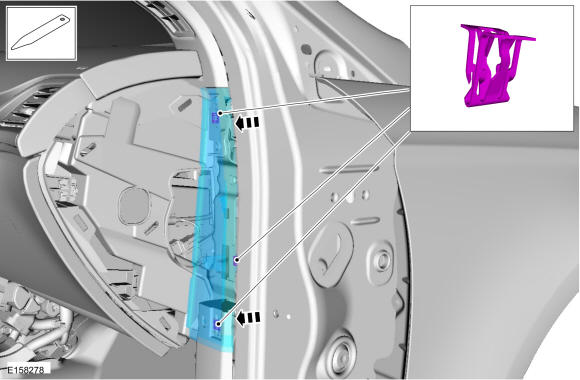

  24. On both sides. Remove the cowl side trim panel. Use the General Equipment: Interior Trim Remover
    GFD437272Courtesy of FORD MOTOR COMPANY

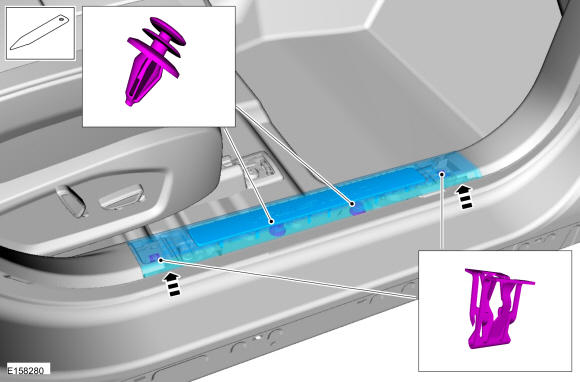

  25. On both sides. Release the clips and remove the scuff plate. Use the General Equipment: Interior Trim Remover
    GFD437273Courtesy of FORD MOTOR COMPANY
  26. On both sides. Release the clips and remove the lower cowl trim panel. Use the General Equipment: Interior Trim Remover
    GFD437262Courtesy of FORD MOTOR COMPANY
  27. On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .

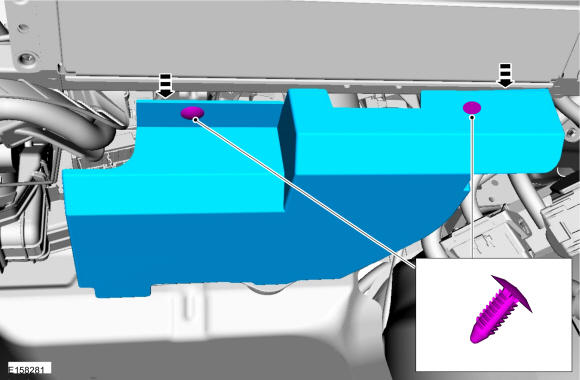

  28. Remove the push pins and RH insulator panel.
    GFD437274Courtesy of FORD MOTOR COMPANY

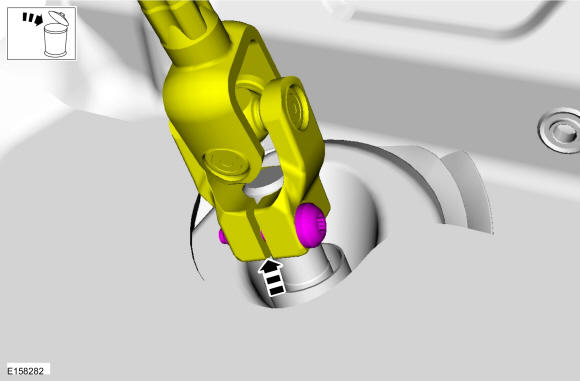

  29. NOTE: Do not allow the steering wheel to rotate while the steering shaft is disconnect, or damage to the clockspring may result.
    GFD437275Courtesy of FORD MOTOR COMPANY

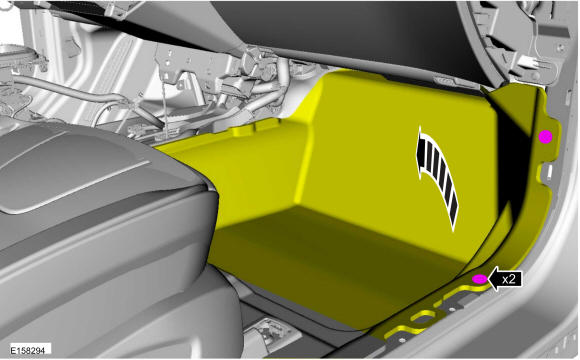

  30. Position the RH carpet aside.
    GFD437276Courtesy of FORD MOTOR COMPANY
  31. Remove the hood latch release handle. Refer to: Hood Latch Release Handle .

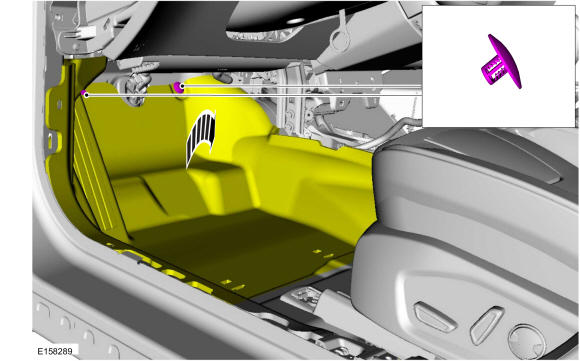

  32. Remove the push pins and position the LH carpet aside.
    GFD436834Courtesy of FORD MOTOR COMPANY

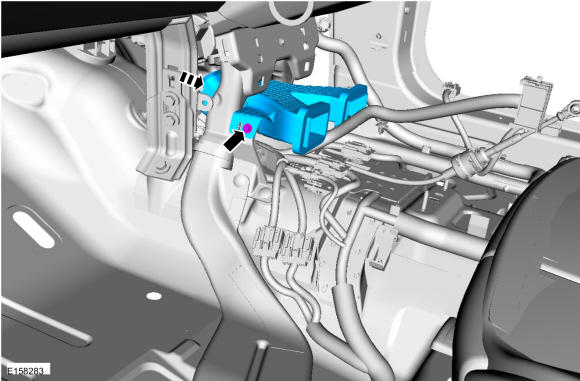

  33. Remove the bolt and the HVAC duct.
    GFD437277Courtesy of FORD MOTOR COMPANY

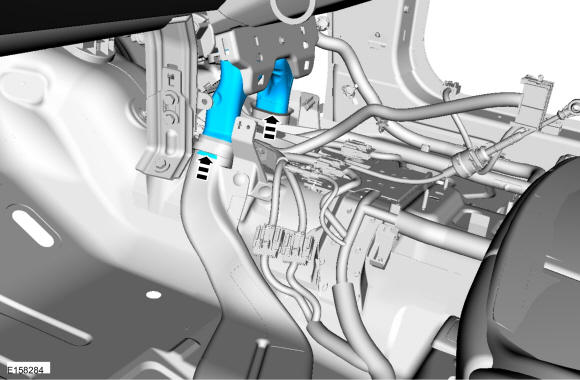

  34. Remove the HVAC duct.
    GFD437278Courtesy of FORD MOTOR COMPANY

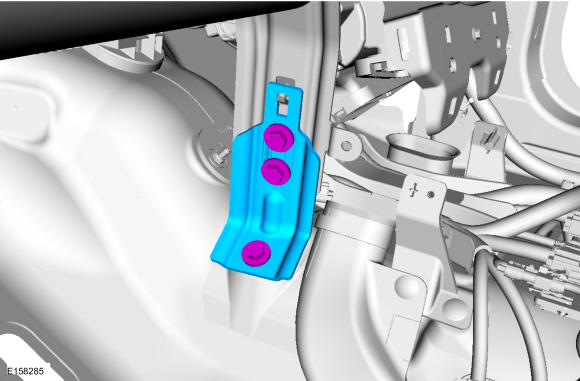

  35. Remove the bolts and the instrument panel center brace.
    GFD437279Courtesy of FORD MOTOR COMPANY
  36. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

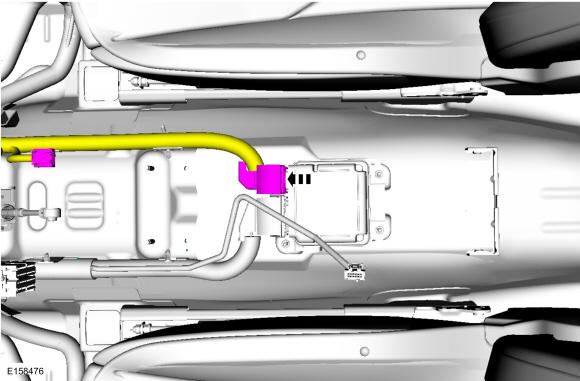

  37. Disconnect the electrical connectors.
    GFD437280Courtesy of FORD MOTOR COMPANY

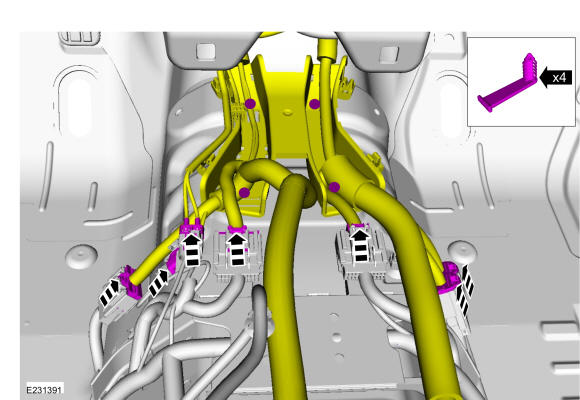

  38. Disconnect the electrical connectors and position the wiring tray aside.
    GFD437281Courtesy of FORD MOTOR COMPANY

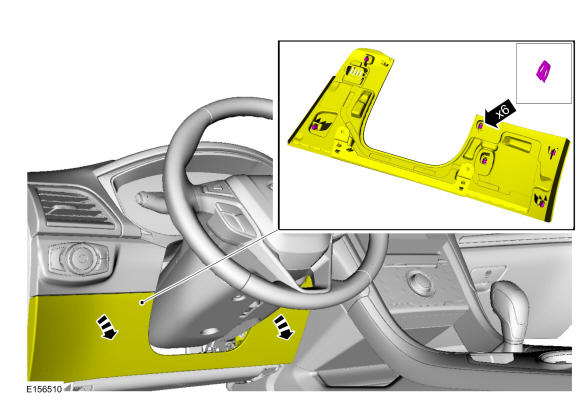

  39. Release the clips and position aside the instrument panel finish panel.
    GFD437282Courtesy of FORD MOTOR COMPANY

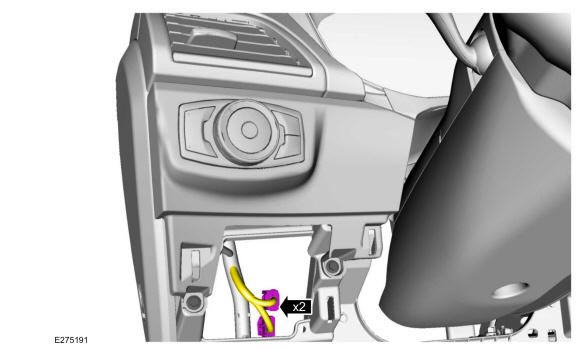

  40. Through the opening disconnect the BCM eletrical connectors.
    GFD437283Courtesy of FORD MOTOR COMPANY

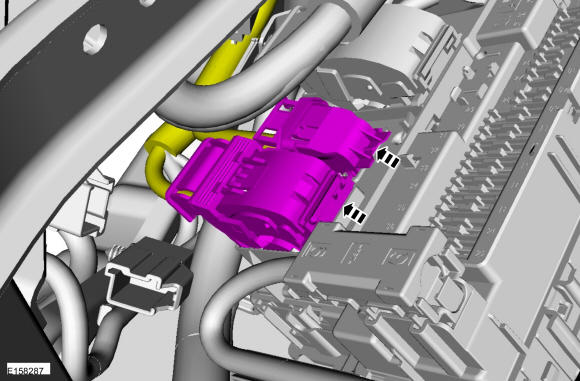

  41. NOTE: LH side of instrument panel.
    GFD437284Courtesy of FORD MOTOR COMPANY

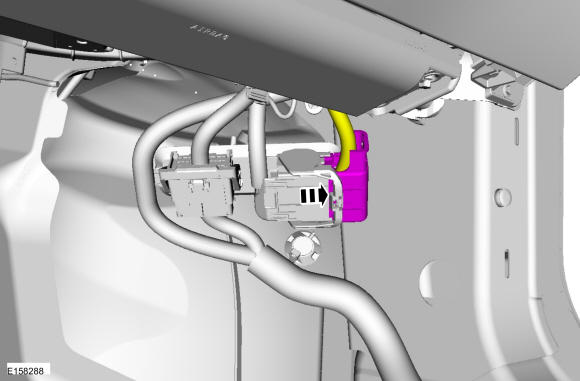

  42. NOTE: RH side of instrument panel.
    GFD437285Courtesy of FORD MOTOR COMPANY

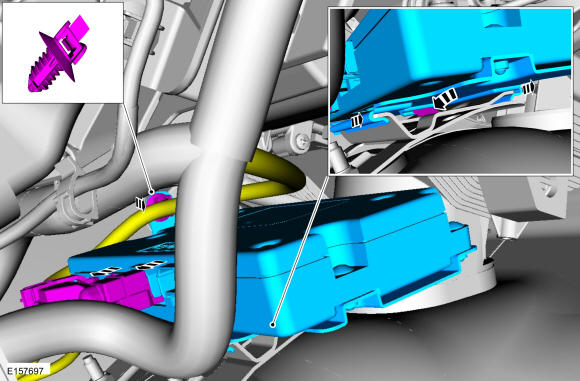

  43. NOTE: If equipped.
    GFD436660Courtesy of FORD MOTOR COMPANY
  44. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

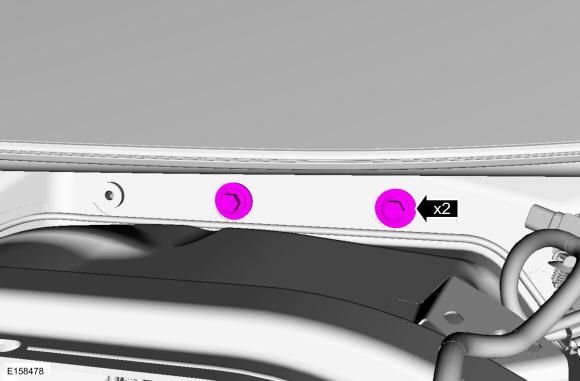

  45. Remove the bolts.
    GFD437286Courtesy of FORD MOTOR COMPANY

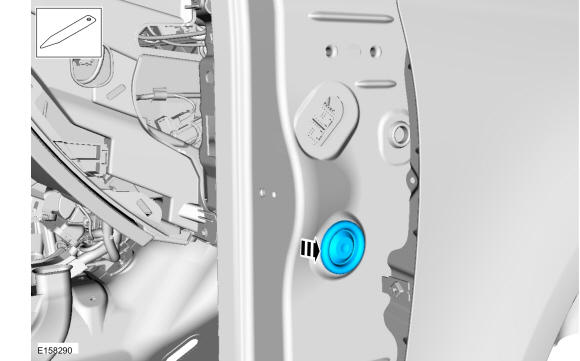

  46. On both sides. Remove the A-pillar to in-vehicle cross beam support bolt cover. Use the General Equipment: Interior Trim Remover
    GFD437287Courtesy of FORD MOTOR COMPANY

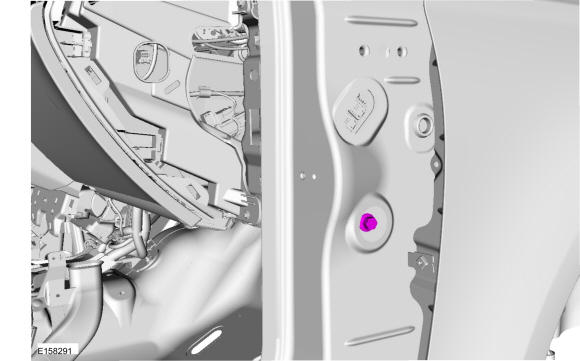

  47. On both sides. Remove the A-pillar to in-vehicle cross beam support bolt.
    GFD437288Courtesy of FORD MOTOR COMPANY

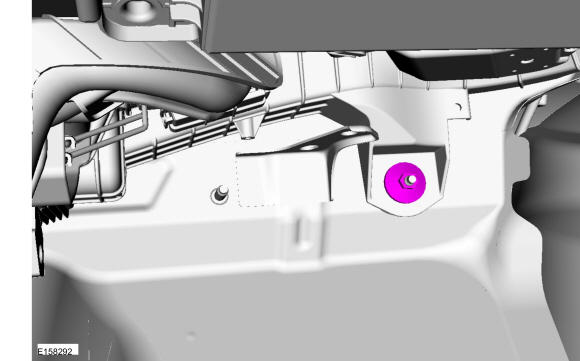

  48. Remove the HVAC nut.
    GFD437289Courtesy of FORD MOTOR COMPANY

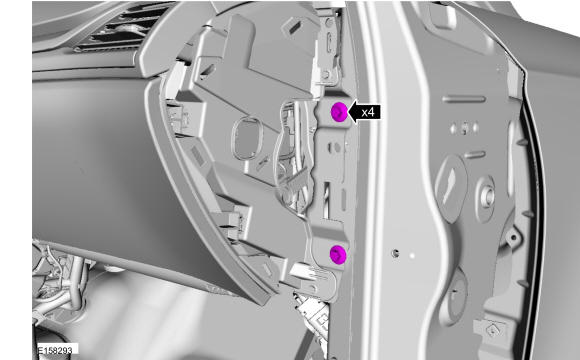

  49. On both sides. Remove the instrument panel support bolts.
    GFD437290Courtesy of FORD MOTOR COMPANY

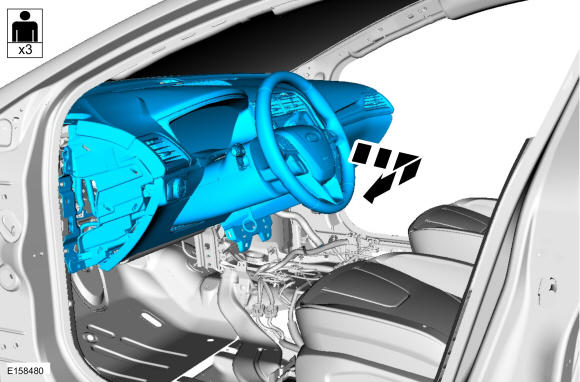

  50. NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.
GFD437291Courtesy of FORD MOTOR COMPANY
