Glove Compartment: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this information, refer to HEALTH AND SAFETY PRECAUTIONS Safety Warnings in this information 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
- Release the clips and remove the RH instrument panel side trim panel. Use the General Equipment: Interior Trim Remover

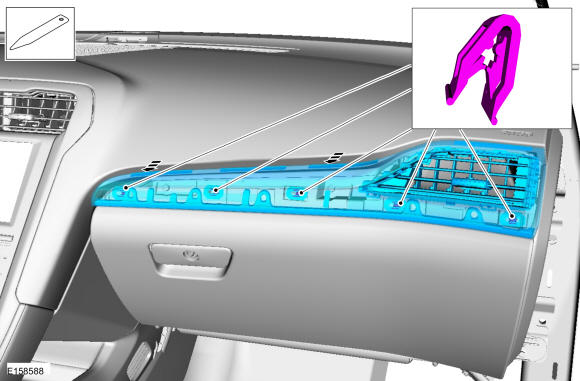

- Release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover

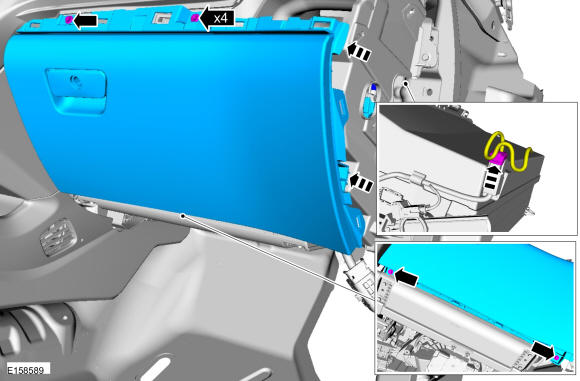

- Remove the bolts, release the retaining tabs and remove the glove compartment. Disconnect the electrical connector.
