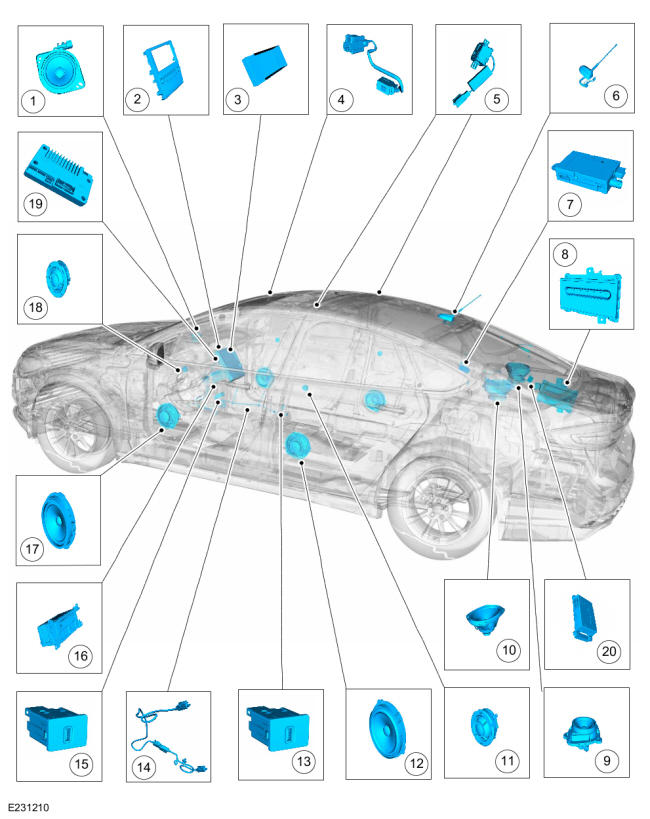

Information and Entertainment System - Component Location
| Item | Description |
|---|---|
| 1 | Instrument panel speaker |
| 2 | FCIM |
| 3 | FDIM |
| 4 | Microphone |
| 5 | ANC microphone |
| 6 | Audio unit antenna |
| 7 | Diversity antenna |
| 8 | DSP |
| 9 | Parcel shelf speaker |
| 10 | Subwoofer speaker |
| 11 | Rear door tweeter speaker |
| 12 | Rear door speaker |
| 13 | Remote USB port |
| 14 | USB port cable |
| 15 | USB hub |
| 16 | ACM |
| 17 | Front door speaker |
| 18 | Front door tweeter speaker |
| 19 | APIM |
| 20 | TCU |
