Active Park Assist Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this information, refer to Safety Warnings General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Remove the console top trim panel. Refer to: Floor Console .
-

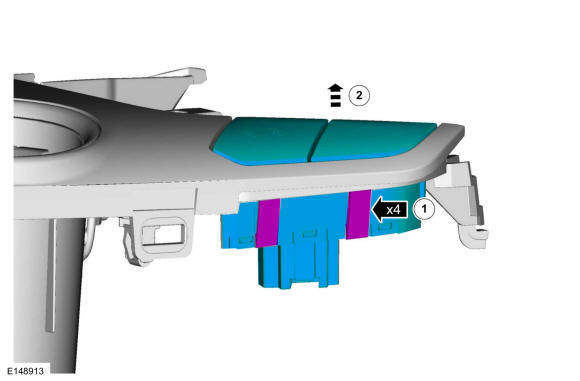

NOTE: Two tabs on each side.
- Release the tabs.
- Remove the active park assist switch.
