Instrument Panel Cluster (IPC): Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

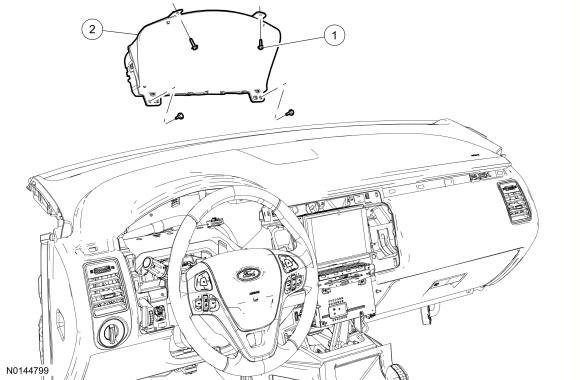

GFD322298Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 W707628 Instrument Panel Cluster (IPC) screws (4 required)
2 10849 IPC
