Adjustable Pedals Control Switch: Notes

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: Steering wheel removed for clarity.

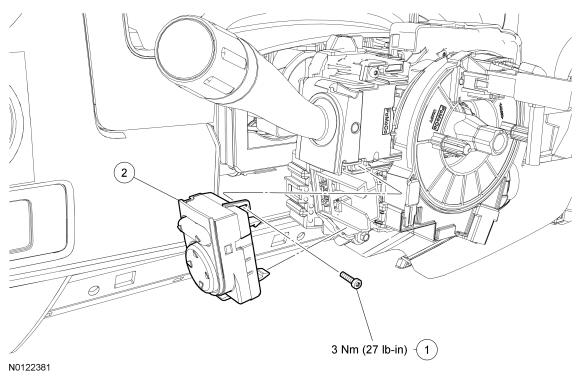

Fig 1: Adjustable Pedals Control Switch Screw with Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W715057	Adjustable pedals control switch screw
2	9G604	Adjustable pedals control switch
