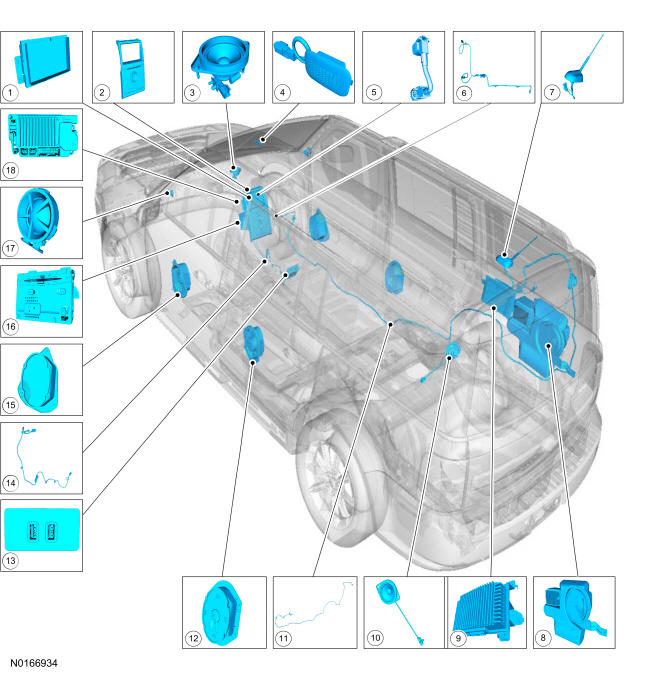

| 1 |
Front Display Interface Module(FDIM) |
- |
| 2 |
Front Controls Interface Module(FCIM) |
- |
| 3 |
Instrument panel speaker |
- |
| 4 |
SYNC® Microphone |
- |
| 5 |
Low Voltage Differential Signalling (LVDS) Cable |
- |
| 6 |
GPS /Satellite splitter |
- |
| 7 |
AM/FM/GPS /Satellite antenna |
- |
| 8 |
Subwoofer enclosure |
- |
| 9 |
Audio Digital Signal Processing(DSP) module |
- |
| 10 |
LH D-pillar speaker |
RH also shown |
| 11 |
AM/FM and GPS /satellite antenna cables |
- |
| 12 |
LH rear door speaker |
RH also shown |
| 13 |
Universal Serial Bus(USB) hub |
- |
| 14 |
USB cable |
- |
| 15 |
LH front door speaker |
RH also shown |
| 16 |
ACM |
- |
| 17 |
LH front tweeter speaker |
RH also shown |
| 18 |
APIM |
- |
