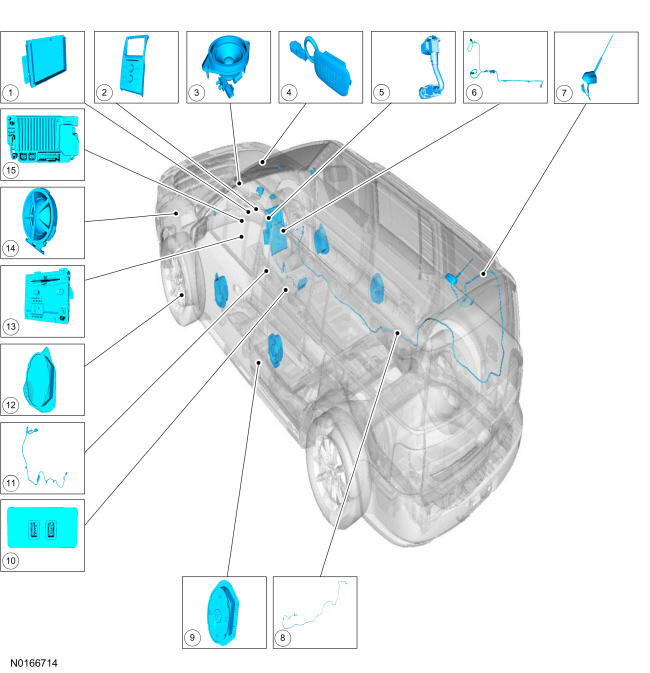

| 1 |
Front Display Interface Module(FDIM) |
- |
| 2 |
Front Controls Interface Module(FCIM) |
- |
| 3 |
Instrument panel speaker |
- |
| 4 |
SYNC® microphone |
- |
| 5 |
Low Voltage Differential Signalling (LVDS) cable |
- |
| 6 |
GPS /Satellite radio splitter |
- |
| 7 |
AM/FM/Satellite/GPS antenna |
- |
| 8 |
Antenna cable |
- |
| 9 |
Rear door speaker |
LH and RH shown in illustration |
| 10 |
Universal Serial Bus(USB) hub |
- |
| 11 |
USB cable |
- |
| 12 |
Front door speaker |
LH and RH shown in illustration |
| 13 |
ACM |
- |
| 14 |
Front tweeter speaker |
LH and RH shown in illustration |
| 15 |
APIM |
- |
