Fiesta S, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Parking Aid
Parking Aid

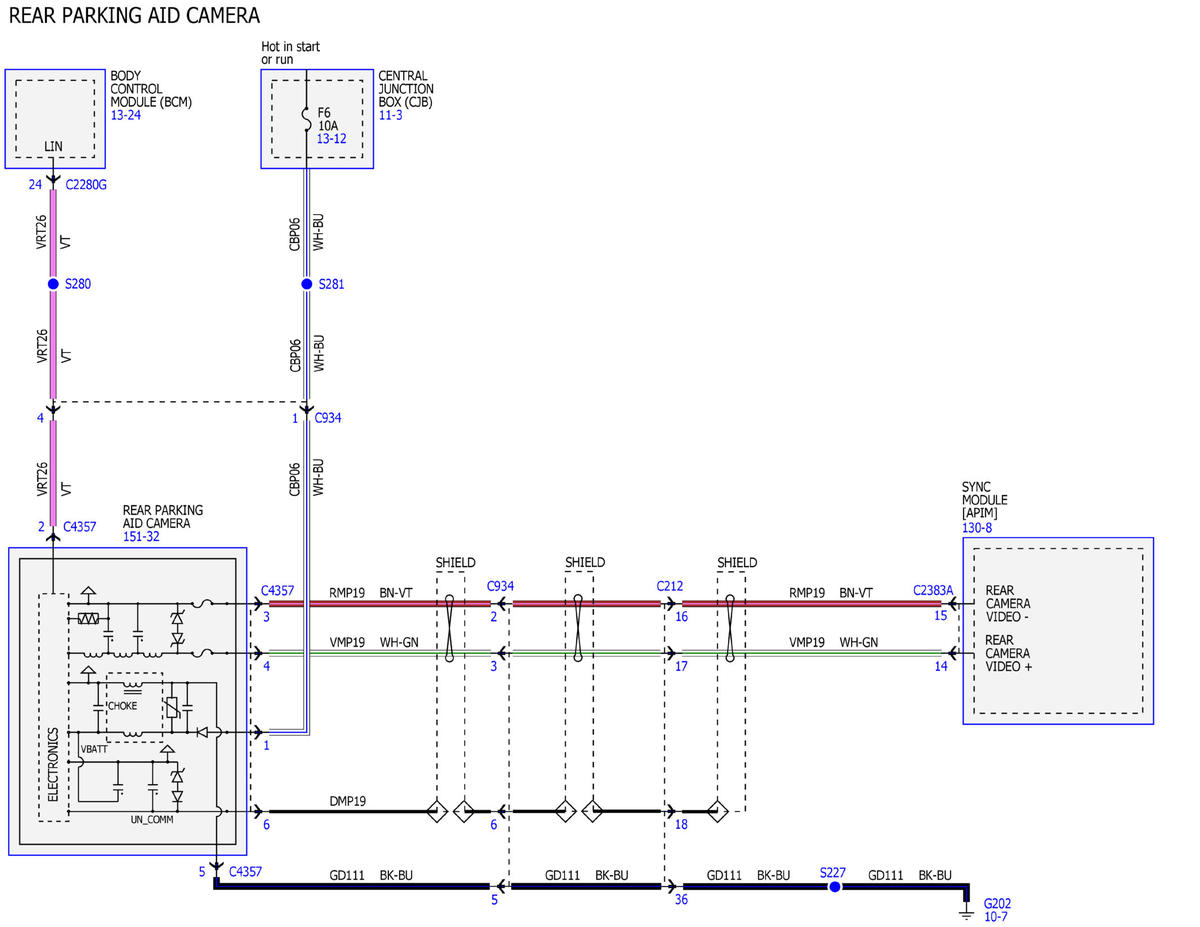

Fig 1: Parking Aid Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY

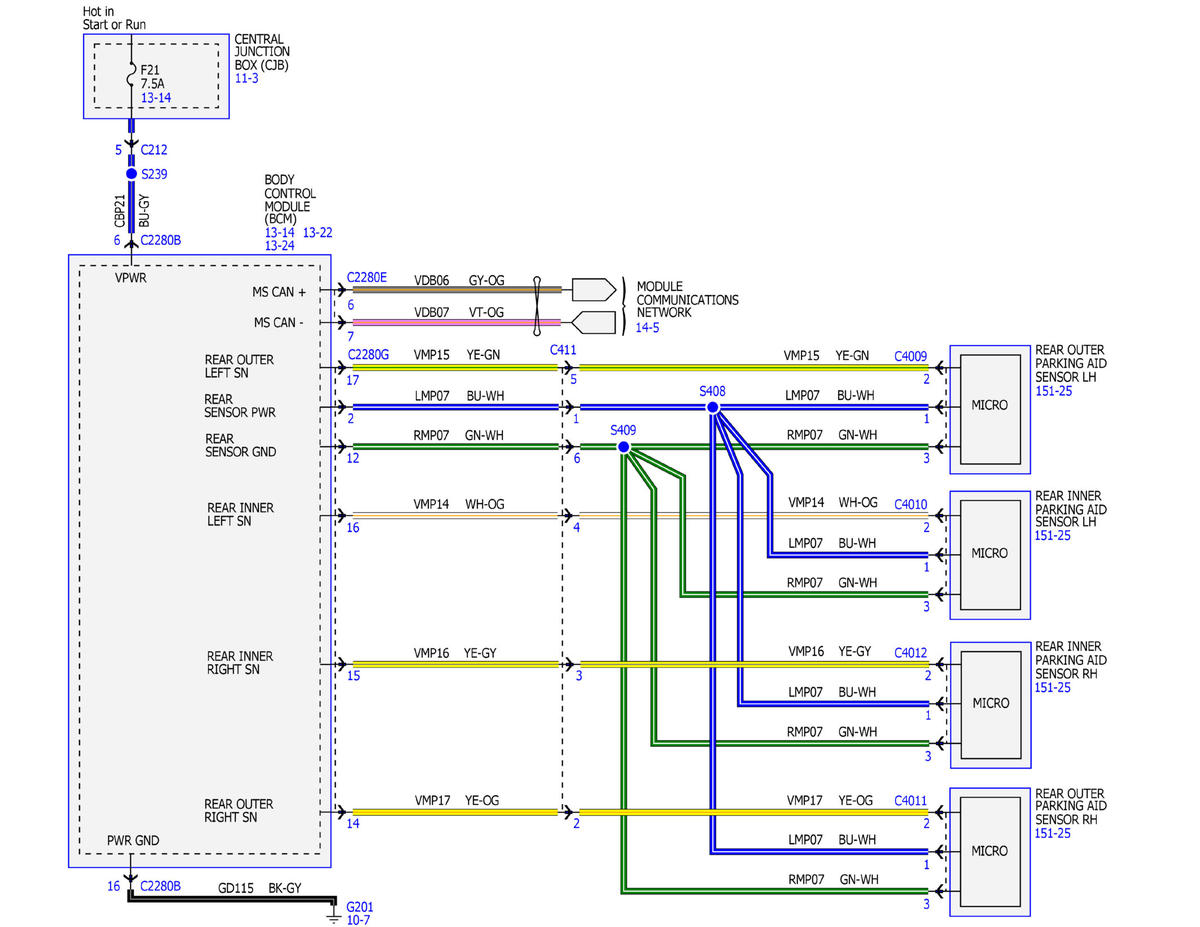

Fig 2: Parking Aid Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
