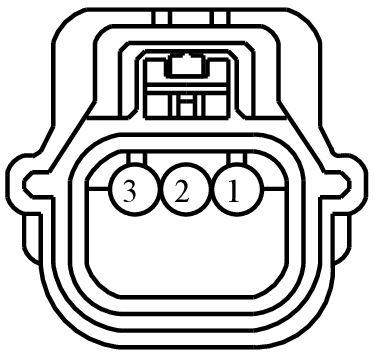

Connector End View (C4009) - REAR OUTER PARKING AID SENSOR LH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4009 | REAR OUTER PARKING AID SENSOR LH | 15K868 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LMP07 (BU-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR + | N/A | ||||
| 2 | VMP15 (YE-GN) | 20 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | N/A | ||||
| 3 | RMP07 (GN-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR - | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1400
Service Part Number:
9U2Z-14S411-CC
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Monitor - Crankcase Ventilation
- Sensor - Air Suspension
- Sensor - Front Park Aid (FPA)
- Sensor - Occupant Classification
- Sensor - Reverse Park Aide (RPA)
- Switch - A/C Compressor Clutch Cycling
- Switch - A/C High Pressure
Pigtail Kit Part Number WPT-1315
Service Part Number:
9U2Z-14S411-CB
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Monitor - Crankcase Ventilation
- Sensor - Air Suspension
- Sensor - Front Park Aid (FPA)
- Sensor - Occupant Classification
- Sensor - Reverse Park Aide (RPA)
- Switch - A/C Compressor Clutch Cycling
- Switch - A/C High Pressure
