Brake Master Cylinder: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the battery tray. Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma . Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma .

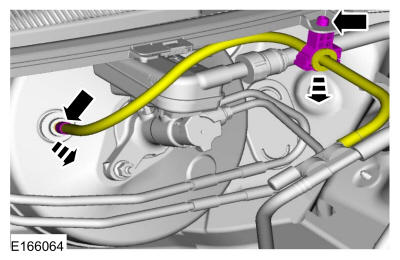

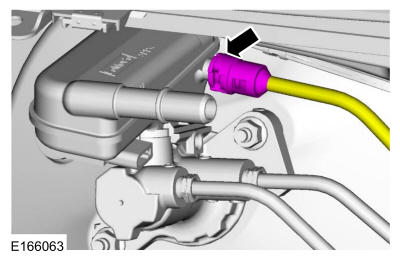

Disconnect the vacuum tube from the brake booster and detach the routing clip.

Courtesy of FORD MOTOR COMPANY

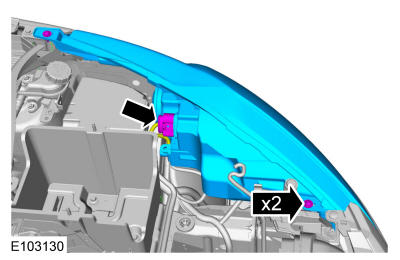

Disconnect the electrical connector, remove the screws and the headlamp assembly.

Courtesy of FORD MOTOR COMPANY

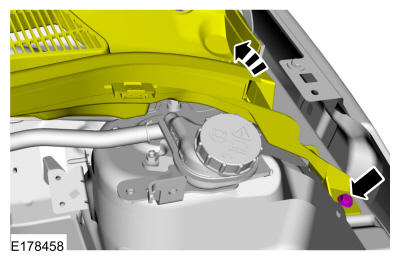

Remove the bolt and position the cowl vent panel upward.
Torque: 19 lb.in (2.2 Nm)

Courtesy of FORD MOTOR COMPANY

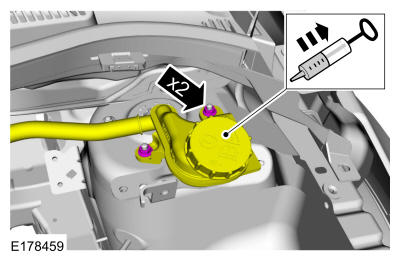

Using a suitable suction device, remove the brake fluid from the remote reservoir and then remove the nuts.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Release the coupling and remove the remote brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY

Vehicles with manual transmission

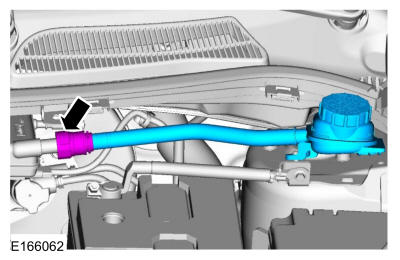

Release the coupling and disconnect the clutch master cylinder tube.

Courtesy of FORD MOTOR COMPANY

All vehicles

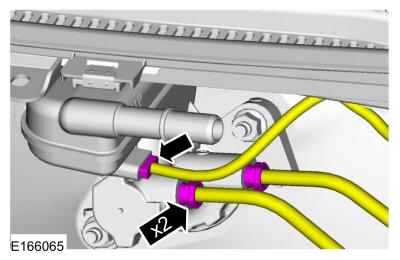

Disconnect the brake fluid level sensor electrical connector and the brake tube fittings.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Before installing the master cylinder make sure a new brake booster-to-master cylinder O-ring is in place and the mating faces are clean.

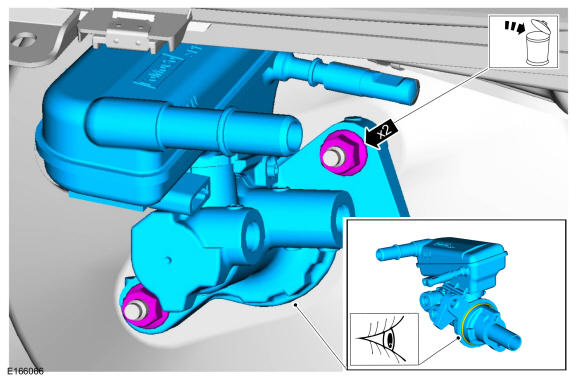

Remove the nuts and the brake master cylinder. Discard the nuts.

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care when handling the component.

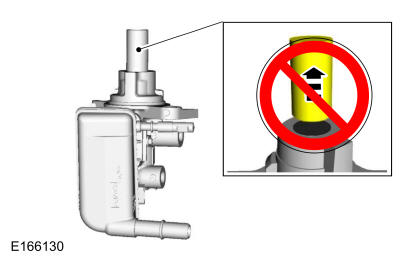

Do not remove the brake master cylinder piston extension.

Courtesy of FORD MOTOR COMPANY
