Turbocharger LH: Installation

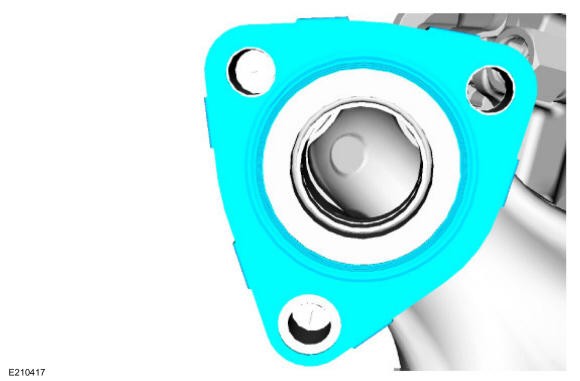

- Install the new the turbocharger gasket.

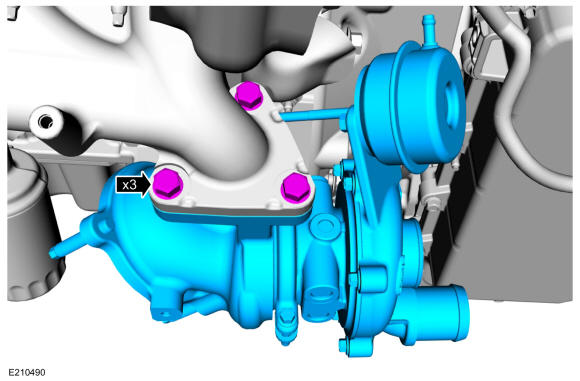

- Install the turbocharger, then install and tighten the turbocharger mounting bolts.
Torque: 33 lb.ft (45 Nm)

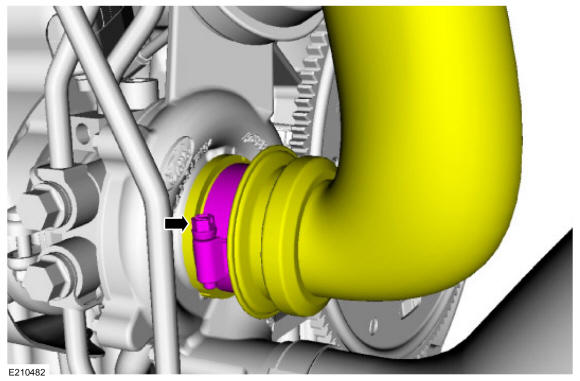

- Install the turbocharger outlet pipe to the turbocharger and then tighten the turbocharger outlet pipe clamp.
Torque: 44 lb.in (5 Nm)
- Install the turbocharger coolant tube linked sealing washers.

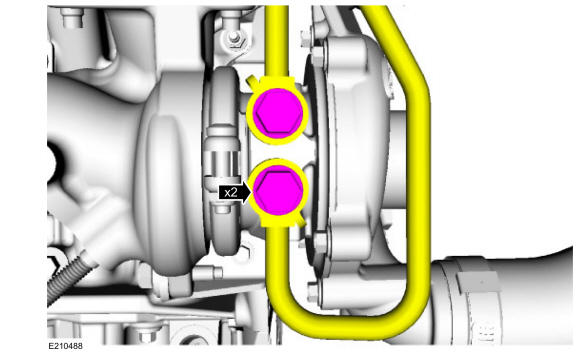

- Install the turbocharger coolant tubes, then install and tighten the new turbocharger coolant tube bolts.
Torque: Stage 1: 106 lb.in (12 Nm) | Stage 2: 60 deg.

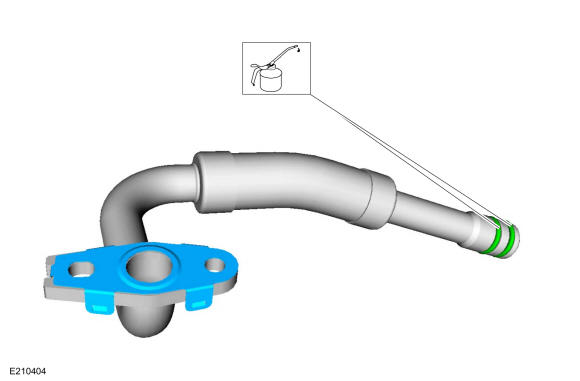

- Install a new turbocharger oil return tube gasket and the new turbocharger oil return tube O-ring seals. Lubricate the turbocharger oil return tube O-ring seals with clean engine oil. Refer to: Specifications
.

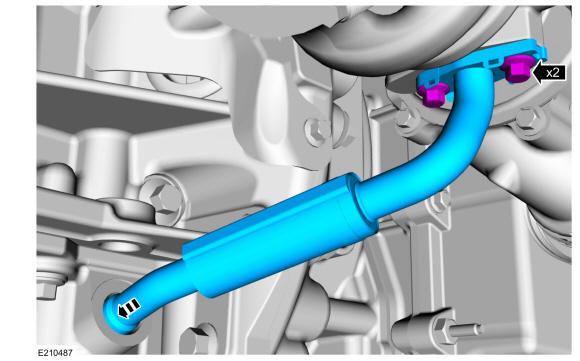

- Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.
Torque: 89 lb.in (10 Nm)

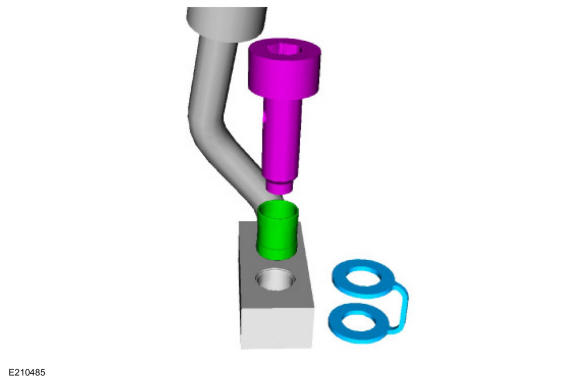

- Install the new turbocharger oil supply tube filter and the new turbocharger oil supply tube linked sealing washer.

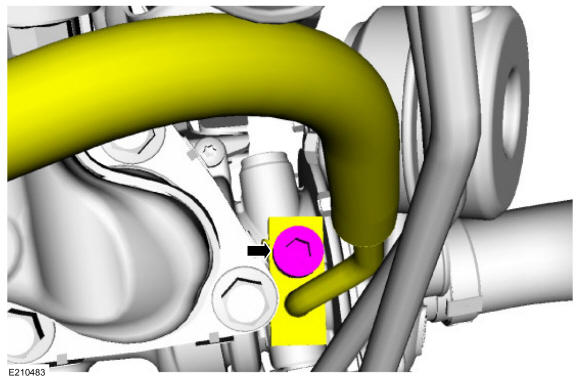

- Install the turbocharger oil supply tube and then tighten the new turbocharger oil supply tube bolt.
Torque: Stage 1: 159 lb.in (18 Nm) | Stage 2: 90 deg.

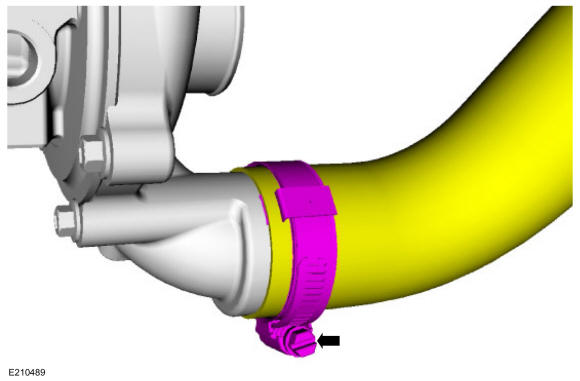

- Install the turbocharger intake pipe to the turbocharger and then tighten the turbocharger intake pipe clamp.
Torque: 44 lb.in (5 Nm)

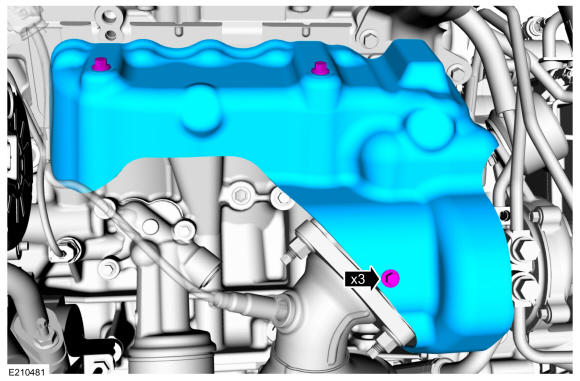

- Install the turbocharger heat shield, then install and tighten the turbocharger heat shield bolts.
Torque: 106 lb.in (12 Nm)
-
NOTE: Make sure the turbocharger wastegate actuator hose does not contact the exhaust manifold heat shield.

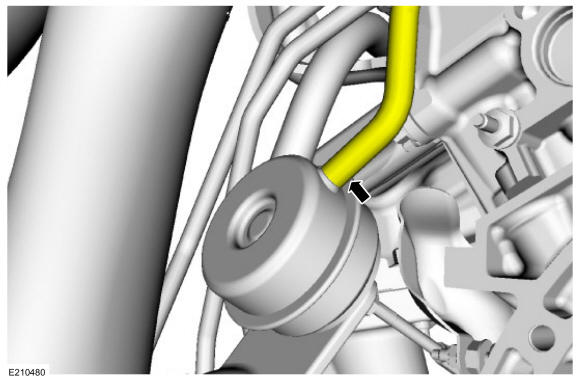

Connect the turbocharger wastegate regulating valve hose to the turbocharger wastegate actuator.
- Install the Catalytic Converter LH. Refer to: Catalytic Converter LH .
- Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Install the air cleaner. Refer to: Air Cleaner .

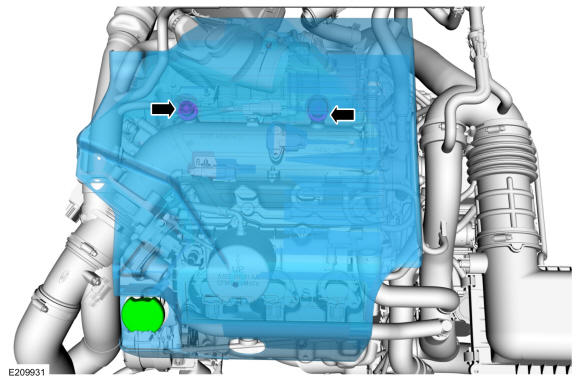

- Remove the oil fill cap, then install the engine appearance cover. Install the oil fill cap.
- Check and top off the engine oil as needed. Refer to: Specifications .
