Brake Vacuum Pump - 2.3L EcoBoost (201kW/273PS): Installation

To install, reverse the removal procedure.

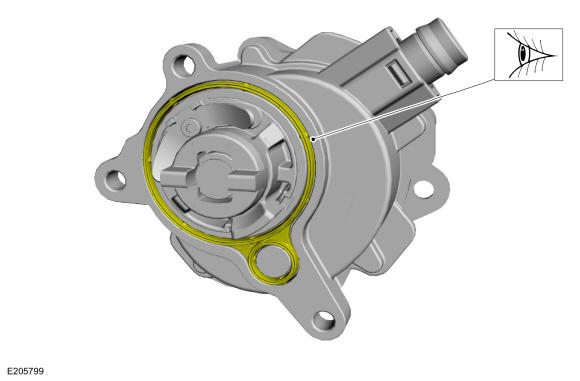

Inspect the gasket and install a new gasket as necessary.

Courtesy of FORD MOTOR COMPANY

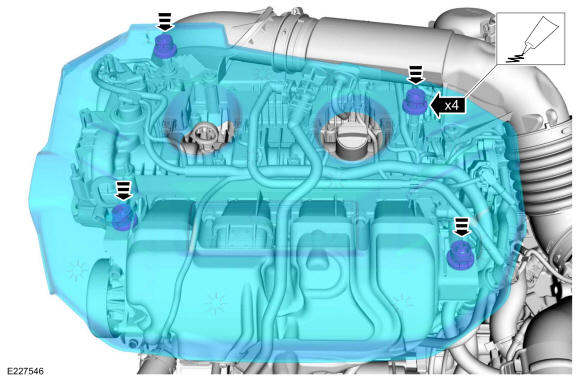

1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.

Courtesy of FORD MOTOR COMPANY
