Brake Pedal Control Switch: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

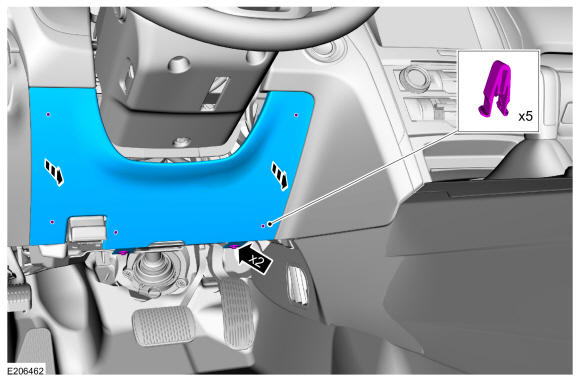

1. Remove the screws, detach the clips and remove the instrument panel lower steering column cover.

   Courtesy of FORD MOTOR COMPANY

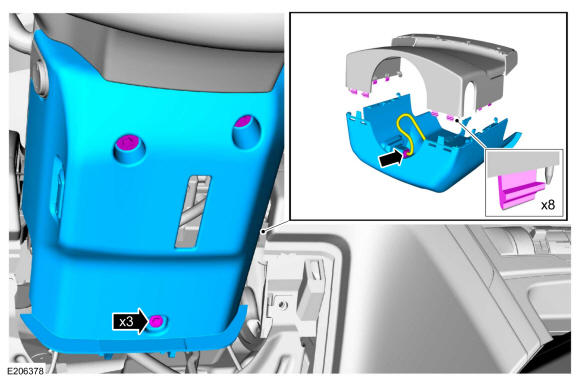

2. Remove the screws, detach the upper steering column shroud, disconnect the electrical connector and remove the lower steering column shroud.

   Courtesy of FORD MOTOR COMPANY

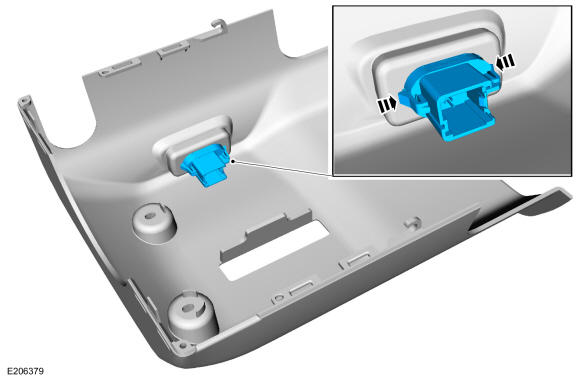

3. Press inward on the tabs and remove the brake pedal control switch.

Courtesy of FORD MOTOR COMPANY
