Brake Master Cylinder: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

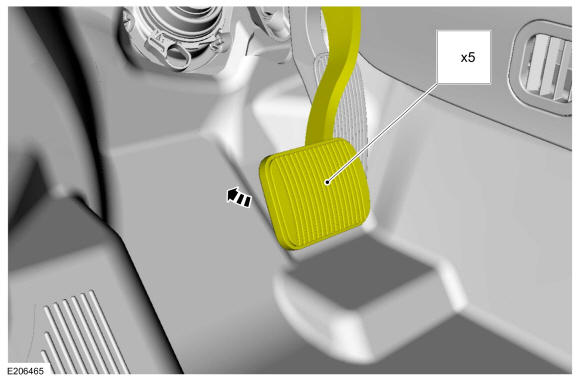

1. With the engine off, press the brake pedal 5 times to deplete the brake booster vacuum.

   Courtesy of FORD MOTOR COMPANY

2. Remove the battery. Refer to: Battery .
3. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (201kW/273PS) . Refer to: Air Cleaner Outlet Pipe (257kW/350PS) . Refer to: Air Cleaner Outlet Pipe (209kW/284PS) .

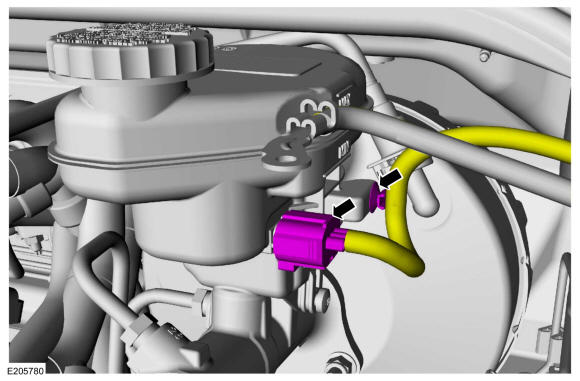

4. Disconnect the brake fluid level sensor and detach the wiring retainer.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: If the brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
   NOTE: Make sure all openings are sealed.

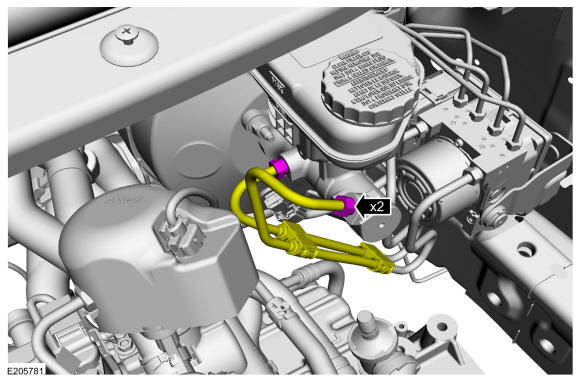

   Disconnect the brake tubes.

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Make sure the master cylinder-to-brake booster seal is removed with the master cylinder.

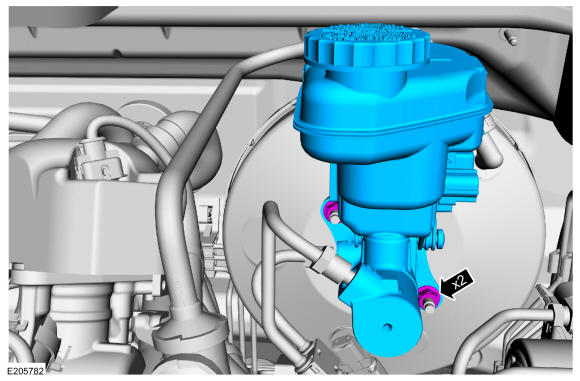

   Remove the nuts and the brake master cylinder.

   Torque: 177 lb.in (20 Nm)
