Brake Vacuum Sensor: Removal

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

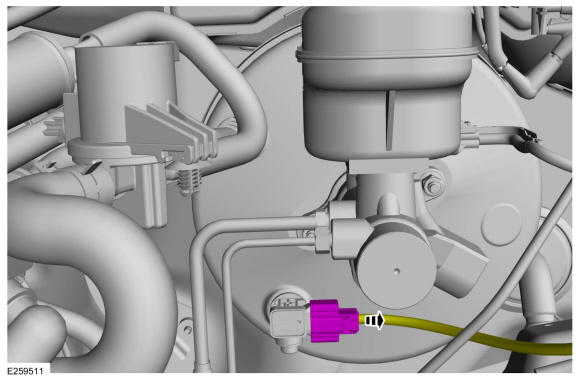

  1. Disconnect the vacuum sensor electrical connector.
    GFD291571Courtesy of FORD MOTOR COMPANY

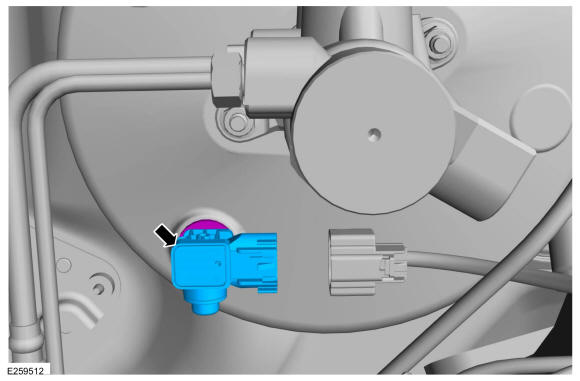

  2. Remove the vacuum sensor.
GFD291572Courtesy of FORD MOTOR COMPANY
