Brake Master Cylinder: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Remove the battery tray. Refer to: Battery Tray .

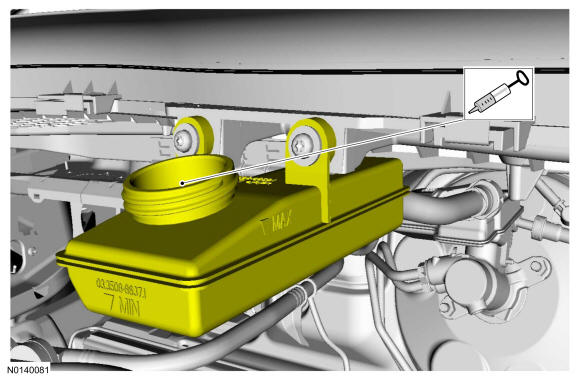

Using a suitable suction device, remove the brake fluid from the remote reservoir.

Courtesy of FORD MOTOR COMPANY

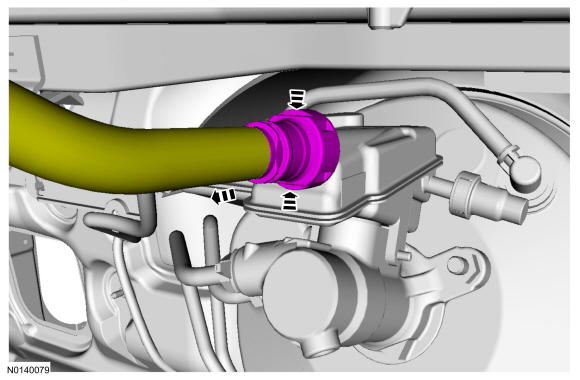

Release the coupling and disconnect the remote reservoir tube from the brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

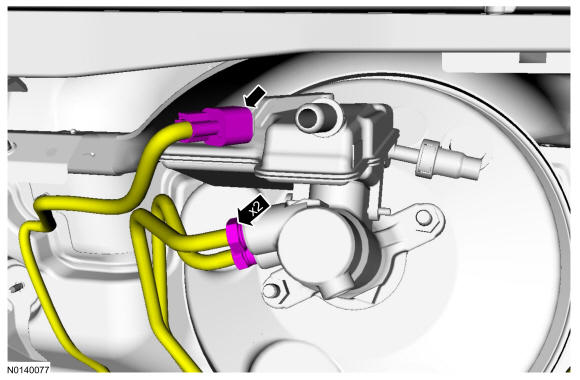

Disconnect the brake fluid level sensor electrical connector and the brake tube fittings.

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

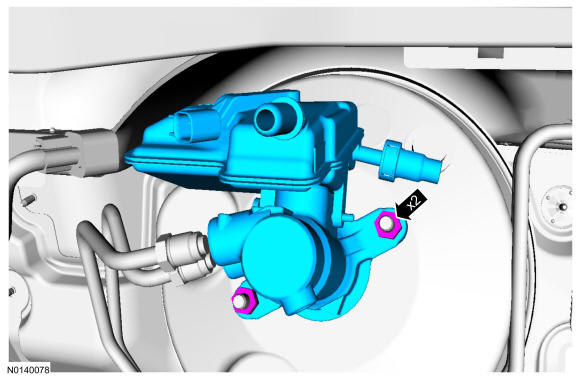

Remove the nuts and the brake master cylinder.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
