Brake Fluid Reservoir: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake master cylinder. Refer to: Brake Master Cylinder  .

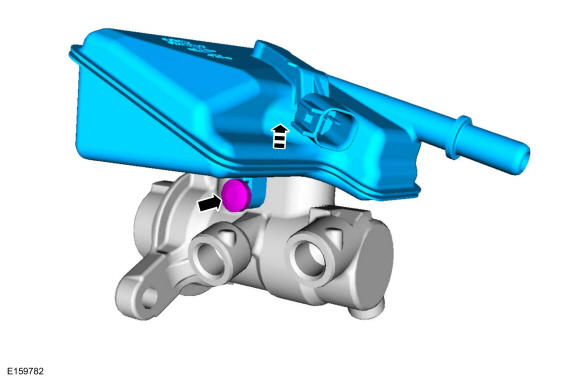

  2. Remove the pin and the brake fluid reservoir.
    GFD370482Courtesy of FORD MOTOR COMPANY
  3. Remove and discard the brake fluid reservoir seals.
GFD370483Courtesy of FORD MOTOR COMPANY
