WASTEGATE Control Valve Solenoid: Installation

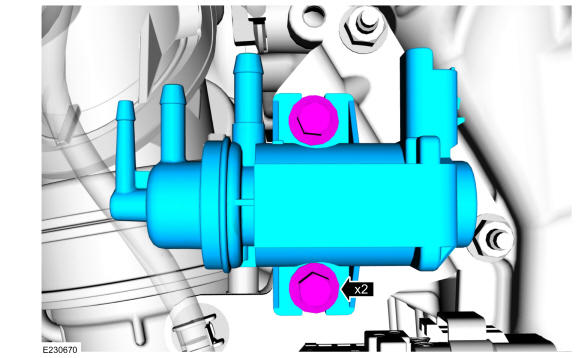

  1. Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retainers.

    Torque

    : 53 lb.in (6 Nm)

    GFD372222Courtesy of FORD MOTOR COMPANY

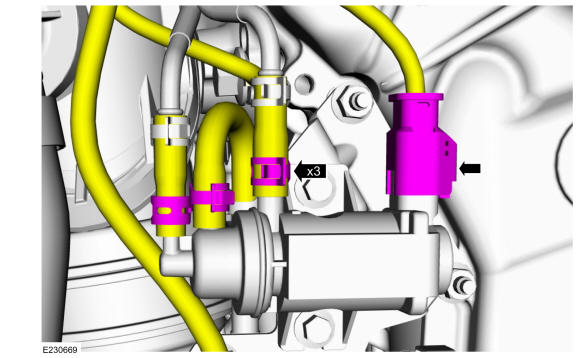

  2. Connect the wastegate control valve solenoid hoses and the wastegate control valve solenoid electrical connector. Use the General Equipment: Hose Clamp Remover/Installer
GFD372221Courtesy of FORD MOTOR COMPANY
