Removal And Installation: Turbocharger: Installation

NOTE: Make sure that the mating faces are clean and free of foreign material.

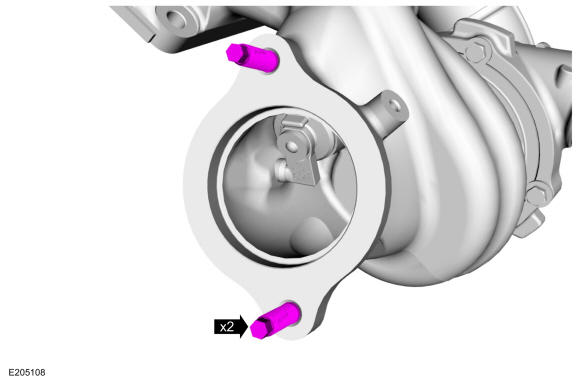

  1. If removed install and then tighten the turbocharger exhaust flange studbolts.

    Torque

    : 18 lb.ft (25 Nm)

    GFD372202Courtesy of FORD MOTOR COMPANY

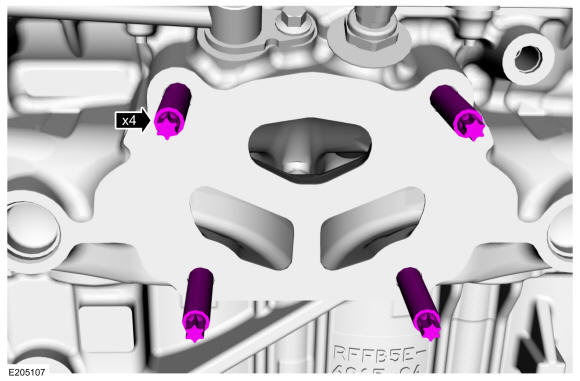

  2. If removed install and then tighten the turbocharger mounting studs.

    Torque

    : 150 lb.in (17 Nm)

    GFD372201Courtesy of FORD MOTOR COMPANY

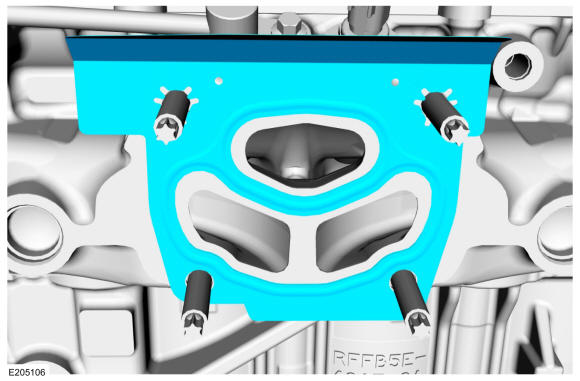

  3. Install the new turbocharger gasket.
    GFD372203Courtesy of FORD MOTOR COMPANY

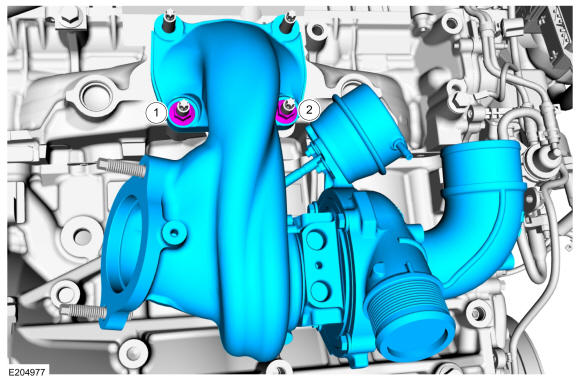

  4. Install the turbocharger, then install and tighten the lower turbocharger mounting nuts.

    Torque

    : 1 : 37 lb.ft (50 Nm) 2 : 37 lb.ft (50 Nm)

    GFD372204Courtesy of FORD MOTOR COMPANY

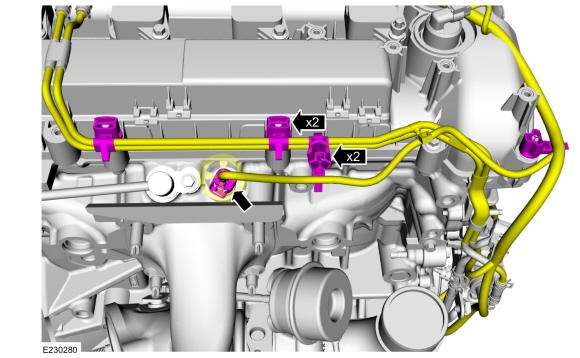

  5. Position and attach the turbocharger control valve vacuum tube retainers. Connect the cylinder head temperature electrical connector and then attach the cylinder head temperature wiring harness retainer.
    GFD372198Courtesy of FORD MOTOR COMPANY

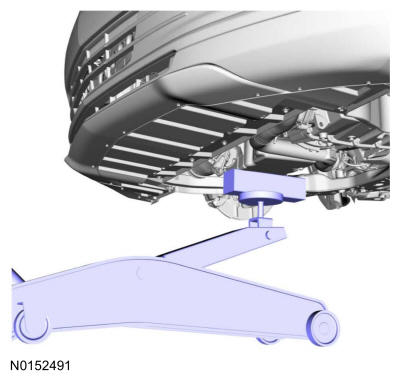

  6. Raise the jack and position the engine back. Use the General Equipment: Trolley JackUse the General Equipment: Wooden Block
    GFD371253Courtesy of FORD MOTOR COMPANY
  7. Install the engine mount. Refer to: Engine Mount .
  8. Install a new turbocharger oil return tube O-ring seal and a new turbocharger oil return tube gasket. Lubricate the new turbocharger oil return tube O-ring seal with clean engine oil. Refer to: Specifications .
    GFD372205Courtesy of FORD MOTOR COMPANY
  9. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: The oil return tube must be fully seated prior to fastener rundown.

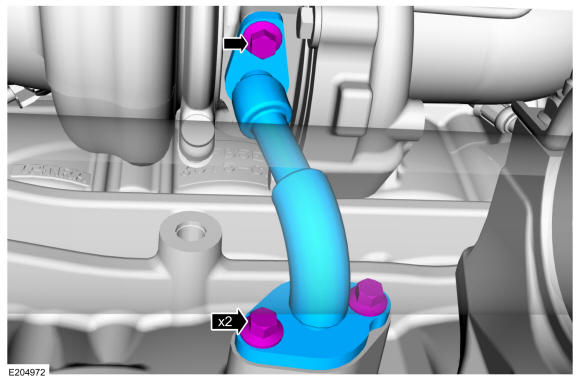

    Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque

    : 89 lb.in (10 Nm)

    GFD372196Courtesy of FORD MOTOR COMPANY

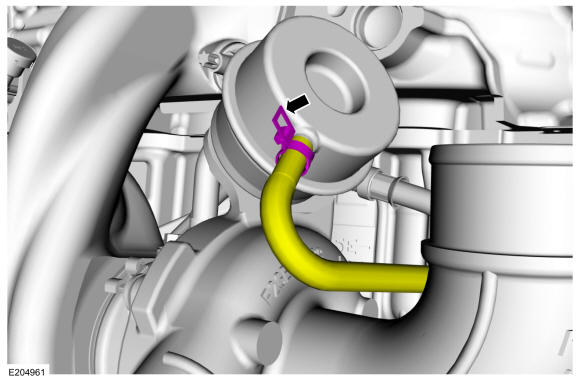

  10. Connect the turbocharger wastegate control hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD372195Courtesy of FORD MOTOR COMPANY
  11. NOTE: Do not reuse the turbocharger oil filter, a new turbocharger oil filter must be installed.

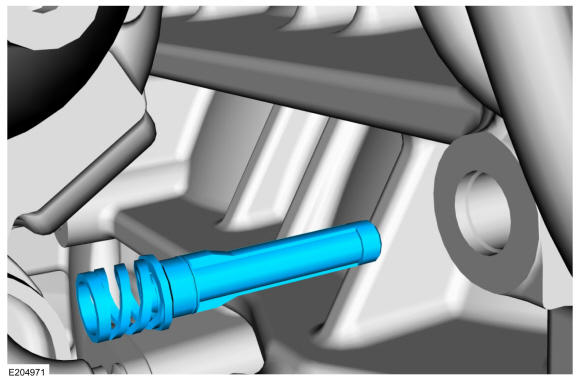

    Install the new turbocharger oil filter.

    GFD372206Courtesy of FORD MOTOR COMPANY
  12. Install a new turbocharger oil supply tube O-ring seal and the new turbocharger oil supply tube sealing washers. Lubricate the new turbocharger oil supply tube O-ring seal with clean engine oil. Refer to: Specifications .
    GFD372207Courtesy of FORD MOTOR COMPANY
  13. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: The oil supply tube must be fully seated prior to fastener tightening.

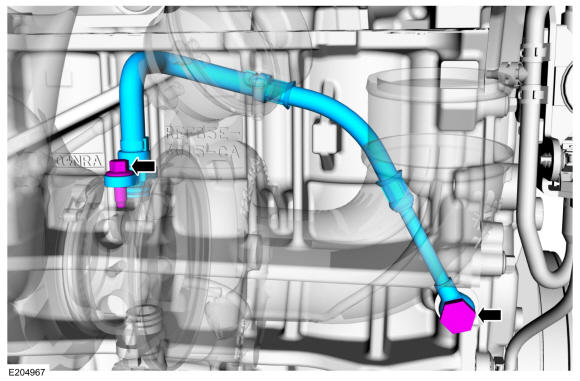

    Install the turbocharger oil supply tube and the turbocharger oil supply tube retaining bolts finger tight at this stage.

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque

    : Bolt : 89 lb.in (10 Nm) Banjo bolt : 18 lb.ft (25 Nm) Tighten the Banjo bolt an additional : 50°

    GFD372193Courtesy of FORD MOTOR COMPANY

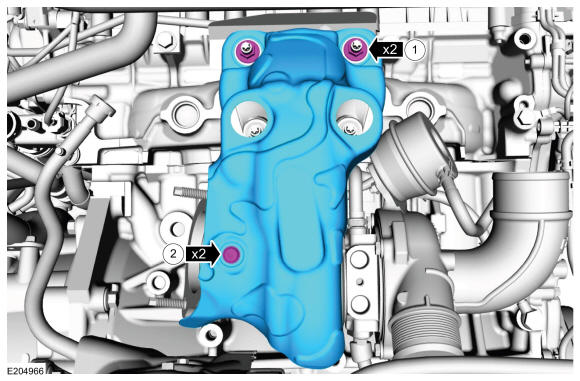

  14. NOTE: Install the turbocharger heat shield, the upper turbocharger mounting nuts and the lower turbocharger heat shield retaining bolt finger tight at this stage.

    1. Tighten the upper turbocharger mounting nuts.

      Torque

      : 37 lb.ft (50 Nm)

    2. Tighten the lower turbocharger heat shield retaining bolt.

      Torque

      : 89 lb.in (10 Nm)

    GFD372192Courtesy of FORD MOTOR COMPANY

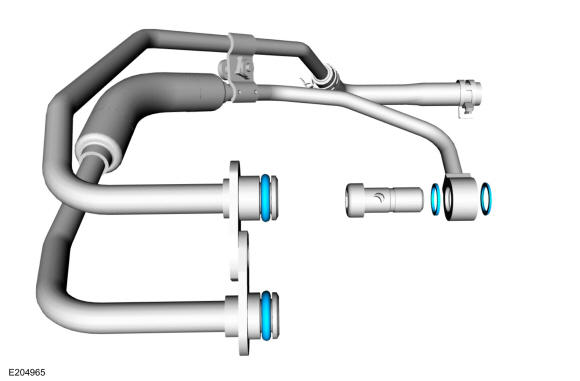

  15. Install the new turbocharger coolant tube sealing washers. Install the new turbocharger coolant tube O-ring seals and lubricate with clean engine coolant. Refer to: Specifications .
    GFD372208Courtesy of FORD MOTOR COMPANY

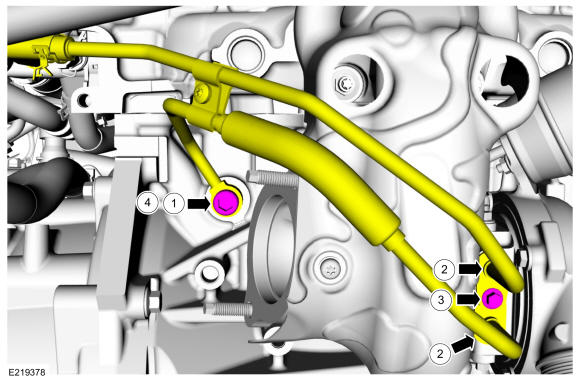

  16. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    1. Hand start the turbocharger cooling tube-to-block bolt at this stage.

      Material

      : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. NOTE: Lubricate the turbocharger cooling tube O-ring seals with clean engine coolant.

      Fit the O-ring end of the turbocharger coolant tubes to the turbocharger. The lower coolant inlet tube goes into the turbocharger first.

    3. Install and tighten the turbocharger coolant tube-to-turbocharger bolt.

      Torque

      : 89 lb.in (10 Nm)

    4. Tighten the turbocharger coolant tube-to-block bolt.

      Torque

      : 27 lb.ft (37 Nm)

    GFD372209Courtesy of FORD MOTOR COMPANY

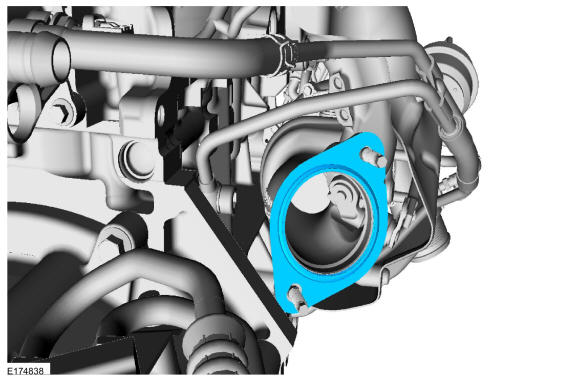

  17. Install the new turbocharger gasket.
    GFD372210Courtesy of FORD MOTOR COMPANY

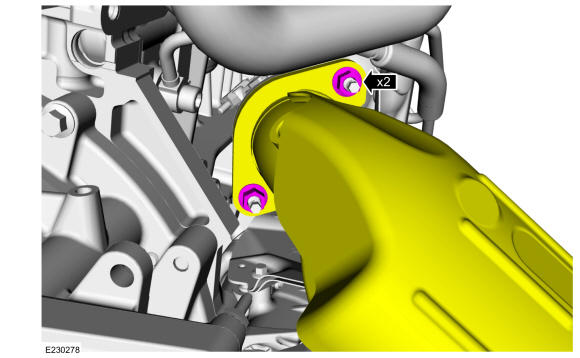

  18. Install the catalytic converter, then install and tighten the new catalytic converter retaining nuts.

    Torque

    : 35 lb.ft (48 Nm)

    GFD372211Courtesy of FORD MOTOR COMPANY
  19. Install the battery tray. Refer to: Battery Tray .

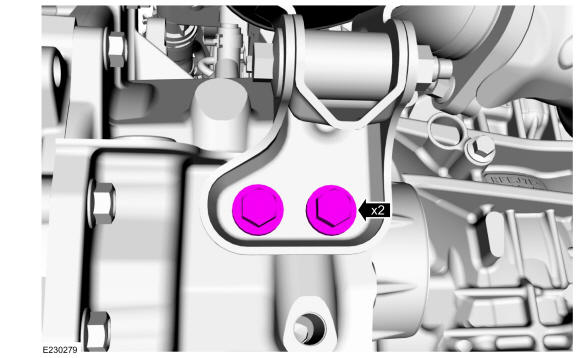

  20. Install and tighten the catalytic converter bracket retaining bolts.

    Torque

    : 35 lb.ft (48 Nm)

    GFD372187Courtesy of FORD MOTOR COMPANY

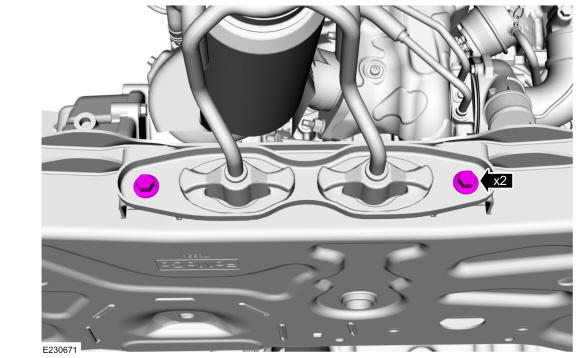

  21. Install and tighten the exhaust isolator bracket bolts.

    Torque

    : 18 lb.ft (25 Nm)

    GFD372186Courtesy of FORD MOTOR COMPANY
  22. Install the Charge Air Cooler (CAC) Intake Pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

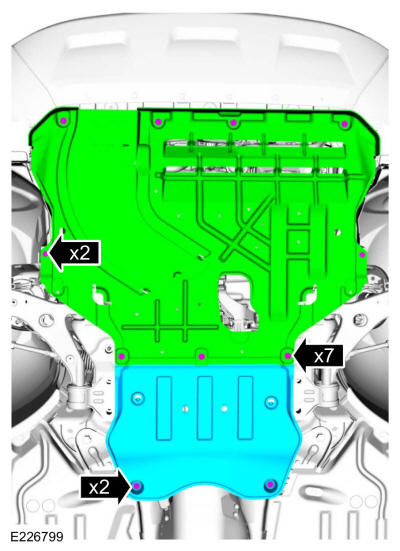

    • Install the stone guard and the retainers.

    • Install the underbody shield and the retainers.

    GFD370836Courtesy of FORD MOTOR COMPANY
  24. Install the upper and lower Air Cleaner Outlet Pipes. Refer to: Air Cleaner Outlet Pipe .
  25. Install the cowl panel. Refer to: Cowl Panel .

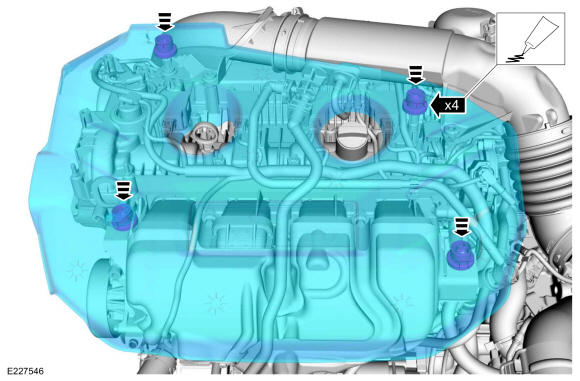

    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material

      : Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
    GFD371269Courtesy of FORD MOTOR COMPANY
  27. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  28. Check and top off the engine oil as needed. Refer to: Specifications .
  29. Check for leaks.
