2.0L EcoBoost

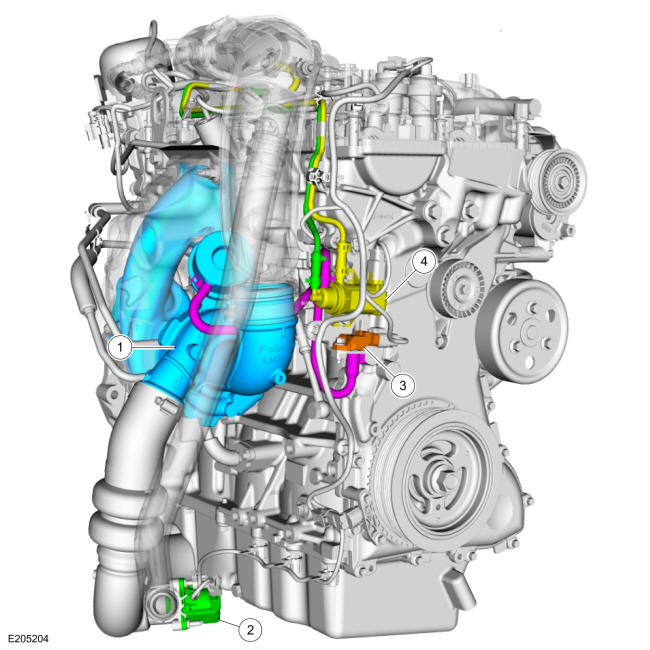

GFD372184Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger
2 Turbocharger bypass valve assembly
3 Turbocharger wastegate vacuum sensor
4 Turbocharger wastegate regulating valve solenoid
