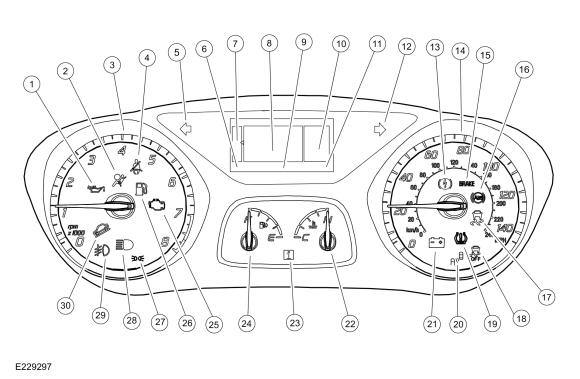

Instrument Panel Cluster (IPC) - Overview: IPC
| 1 | Low oil pressure warning indicator |
|---|---|
| 2 | Airbag warning indicator |
| 3 | Tachometer |
| 4 | Safety belt warning indicator |
| 5 | LH turn indicator |
| 6 | PRNDL display |
| 7 | Main menu display area |
| 8 | Message center display area |
| 9 | Outside air temperature/compass display area |
| 10 | Cruise control RTT indicator AWD display area Lane keeping system display area |
| 11 | Odometer display area |
| 12 | RH turn indicator |
| 13 | Electronic parking brake indicator |
| 14 | Speedometer |
| 15 | Brake warning indicator |
| 16 | ABS warning indicator |
| 17 | Stability-traction control indicator (sliding car icon) |
| 18 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 19 | TPMS warning indicator |
| 20 | Blind Spot Information System (BLIS®) indicator |
| 21 | Charging system warning indicator |
| 22 | Temperature gauge |
| 23 | Information indicator |
| 24 | Fuel gauge |
| 25 | MIL |
| 26 | Low fuel indicator |
| 27 | Lights on indicator |
| 28 | High beam indicator |
| 29 | Fog lamp indicator |
| 30 | Grade assist indicator |
NOTE:
The IPC is serviceable as an assembly only. Do not attempt to disassemble or install a new IPC lens or indicators.
The IPC message center uses a Thin Film Transistor (TFT) display screen with enhanced display capabilities.
