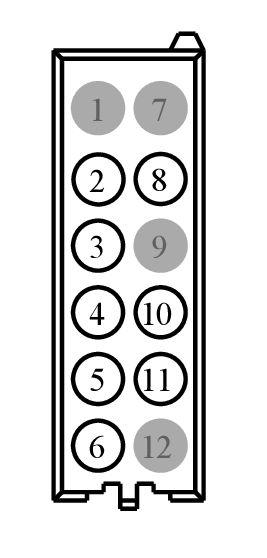

Connector End View (C4014C) - PARKING AID MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4014C	PARKING AID MODULE	BK	14014	15K866	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	N/A
3	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	N/A
4	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
5	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)	N/A
6	VMP30 (BN)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE	N/A
7	*	*	Not Used	N/A
8	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	N/A
9	*	*	Not Used	N/A
10	VMP29 (GN-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE	N/A
11	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	N/A
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1178

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-YA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

12

Vehicle Uses:

• Module - Reverse Park Aid (RPA)
