Parking Assist Control Module (PAM): Removal

1. Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .

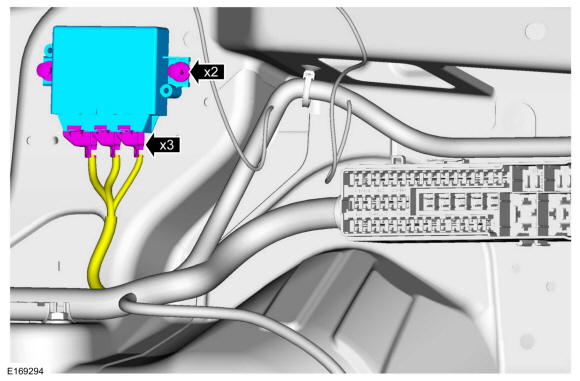

2. Remove the PAM.
   • Disconnect the electrical connectors.
   • Remove the push-pins and the PAM.

Courtesy of FORD MOTOR COMPANY
