Wastegate Vacuum Sensor: Installation

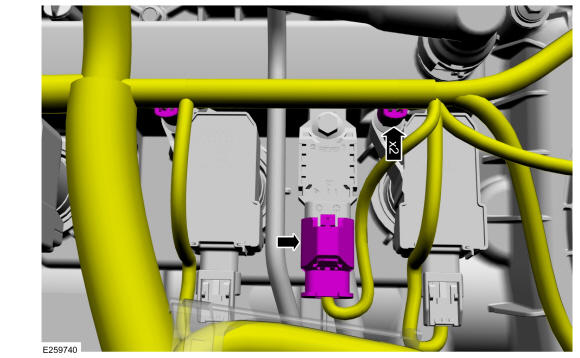

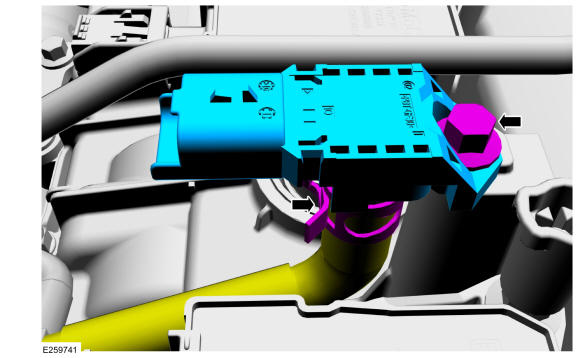

- Connect the wastegate vacuum sensor hose. Install the wastegate vacuum sensor, then install and tighten the wastegate vacuum sensor retainer.. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 62 lb.in (7 Nm)
- Attach the wire harness retainers. Connect the wastegate vacuum sensor electrical connector.
- Install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque: Tighten the nut to: : 42 lb.in (4.8 Nm) - Tighten the bolt to: : 97 lb.in (11 Nm)
