Turbocharger Coolant Supply Tube RH: Installation
- Install a new turbocharger coolant return tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications
-
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components as needed.

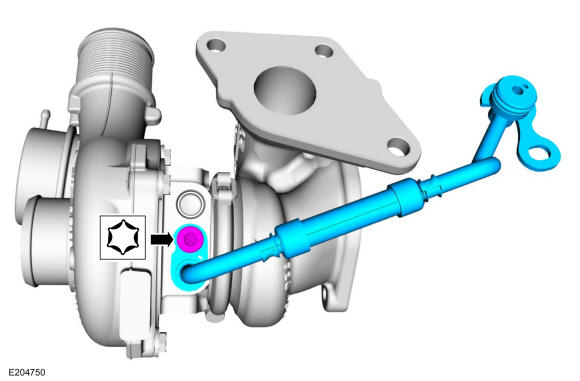

- Install the turbocharger coolant supply tube to the turbocharger, then install and tighten the turbocharger coolant supply tube bolt.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Torque: 89 lb.in (10 Nm)
- Install the turbocharger RH. Refer to: Turbocharger RH )
