Turbocharger 2.7L EcoBoost Right

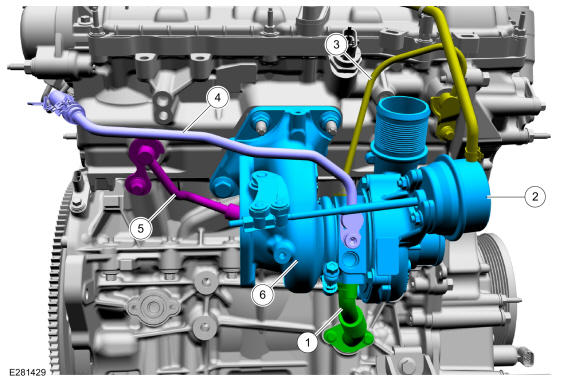

GFD382852Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger oil return tube right
2 Wastegate control actuator right (part of the turbocharger right)
3 Turbocharger oil supply tube right
4 Turbocharger coolant return tube right
5 Turbocharger coolant supply tube right
6 Turbocharger right
