Brake Fluid Reservoir: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake master cylinder. Refer to: Brake Master Cylinder .

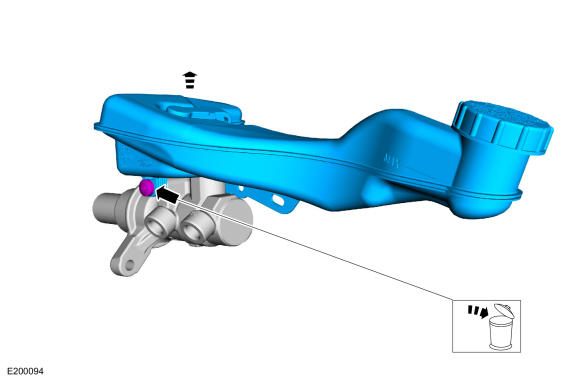

Remove the pin and the brake fluid reservoir. Discard the pin.
Torque

: 49 lb.in (5.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.

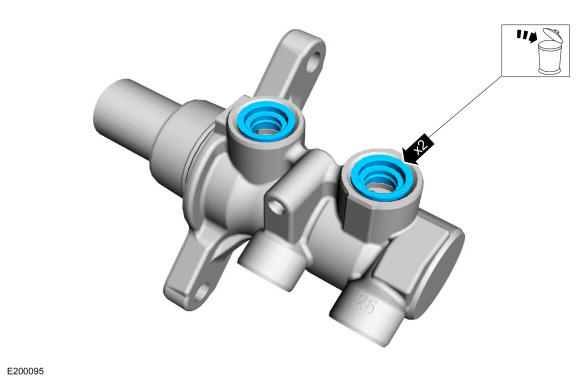

Remove and discard the brake fluid reservoir seals.

Material

: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)

Courtesy of FORD MOTOR COMPANY
